# Duncan Lardeau Juvenile Rainbow Trout Abundance 2019b

The suggested citation for this analytic appendix is:

*Thorley, J.L. and Amies-Galonski, E. (2019) Duncan Lardeau Juvenile
Rainbow Trout Abundance 2019b. A Poisson Consulting Analysis Appendix.
URL: https://www.poissonconsulting.ca/f/1245769249.*

## Background

Rainbow Trout rear in the Lardeau and Lower Duncan rivers. Since 2006 (with the exception of 2015) annual spring snorkel surveys have been conducted to estimate the abundance and distribution of age-1 Rainbow Trout. From 2006 to 2010 the surveys were conducted at fixed index sites. Since 2011 fish observations have been mapped to the river based on their spatial coordinates as recorded by GPS.

The primary aims of the current analyses were to:

- Estimate the abundance of age-1 and age-2 fish by year.
- Estimate the egg deposition.
- Estimate the stock-recruitment relationship between the egg deposition and the abundance of age-1 recruits the following spring.
- Estimate the survival from age-1 to age-2.
- Estimate the expected number of spawners without in river and/or in lake variation.

## Methods

### Data Preparation

The snorkel count data were provided by the Ministry of Forests, Lands and Natural Resource Operations (MFLNRO). The data were manipulated using R version 3.6.1 (R Core Team 2019).

Key assumptions of the data preparation included:

- Counts in visibilities less than 3 m where unreliable.
- Age-1 individuals were those with a fork length \(\leq\) 100 mm while age-2 individual were those with a fork length \(>\) 100 and \(\leq\) 160 mm.

### Statistical Analysis

Model parameters were estimated using Maximum-Likelihood (ML) and Bayesian methods. The Maximum-Likelihood Estimates (MLE) were obtained using TMB (Kristensen et al. 2016) while the Bayesian estimates were produced using JAGS (Plummer 2015) and STAN (Carpenter et al. 2017). For additional information on ML and Bayesian estimation the reader is referred to Millar (2011) and McElreath (2016), respectively. ML models have the advantage of being relatively quick to fit while Bayesian models capture all the uncertainty and allow intuitive probabilistic statements.

Unless stated otherwise, the Bayesian analyses used weakly informative normal and half-normal prior distributions (Gelman, Simpson, and Betancourt 2017). The posterior distributions were estimated from 1500 Markov Chain Monte Carlo (MCMC) samples thinned from the second halves of 3 chains (Kery and Schaub 2011, 38–40). Model convergence was confirmed by ensuring that the potential scale reduction factor \(\hat{R} \leq 1.05\) (Kery and Schaub 2011, 40) and the effective sample size (Brooks et al. 2011) \(\textrm{ESS} \geq 150\) for each of the monitored parameters (Kery and Schaub 2011, 61).

The parameters are summarised in terms of the point *estimate*, standard
deviation (*sd*), the *z-score*, *lower* and *upper* 95%
confidence/credible limits (CLs) and the *p-value* (Kery and Schaub 2011, 37, 42). For ML models, the point estimate is the MLE, the standard
deviation is the standard error, the z-score is
\(\mathrm{MLE}/\mathrm{sd}\) and the 95% CLs are the
\(\mathrm{MLE} \pm 1.96 \cdot \mathrm{sd}\). For Bayesian models, the
estimate is the median (50th percentile) of the MCMC samples, the
z-score is \(\mathrm{mean}/\mathrm{sd}\) and the 95% CLs are the 2.5th and
97.5th percentiles. A p-value of 0.05 indicates that the lower or upper
95% CL is 0.

Model averaging and selection was implemented using an information
theoretic approach (Burnham and Anderson 2002). ML models were compared using
the marginal Akaike’s Information Criterion corrected for small sample
size (AICc, Burnham and Anderson 2002) while Bayesian models were compared
using the Watanabe-Akaike Information Criterion (WAIC, Watanabe 2010). The support for fixed terms in models with
identical *random* (Kery and Schaub 2011, 75) effects was assessed
using the Akaike’s weights (\(w_i\)) which were also used for model
averaging (Burnham and Anderson 2002). The top ML model for each analysis was
refitted as a Bayesian model. Where relevant, model adequacy was
confirmed by examination of residual plots for the full model(s).

The results are displayed graphically by plotting the modeled
relationships between particular variables and the response(s) with the
remaining variables held constant. In general, continuous and discrete
fixed variables are held constant at their mean and first level values,
respectively, while random variables are held constant at their typical
values (expected values of the underlying hyperdistributions)
(Kery and Schaub 2011, 77–82). When informative the influence of
particular variables is expressed in terms of the *effect size* (i.e.,
percent change in the response variable) with 95% confidence/credible
intervals (CIs, Bradford, Korman, and Higgins 2005).

The analyses were implemented using R version 3.6.1
(R Core Team 2019) and the
`mbr`

family of packages.

### Model Descriptions

#### Length Correction

The annual bias (inaccuracy) and error (imprecision) in observer’s fish length estimates when spotlighting (standing) and snorkeling were quantified from the divergence of their length distribution from the length distribution for all observers (including measured fish) in that year. More specifically, the length correction that minimised the Jensen-Shannon divergence (Lin 1991) between the two distributions provided a measure of the inaccuracy while the minimum divergence (the Jensen-Shannon divergence was calculated with log to base 2 which means it lies between 0 and 1) provided a measure of the imprecision.

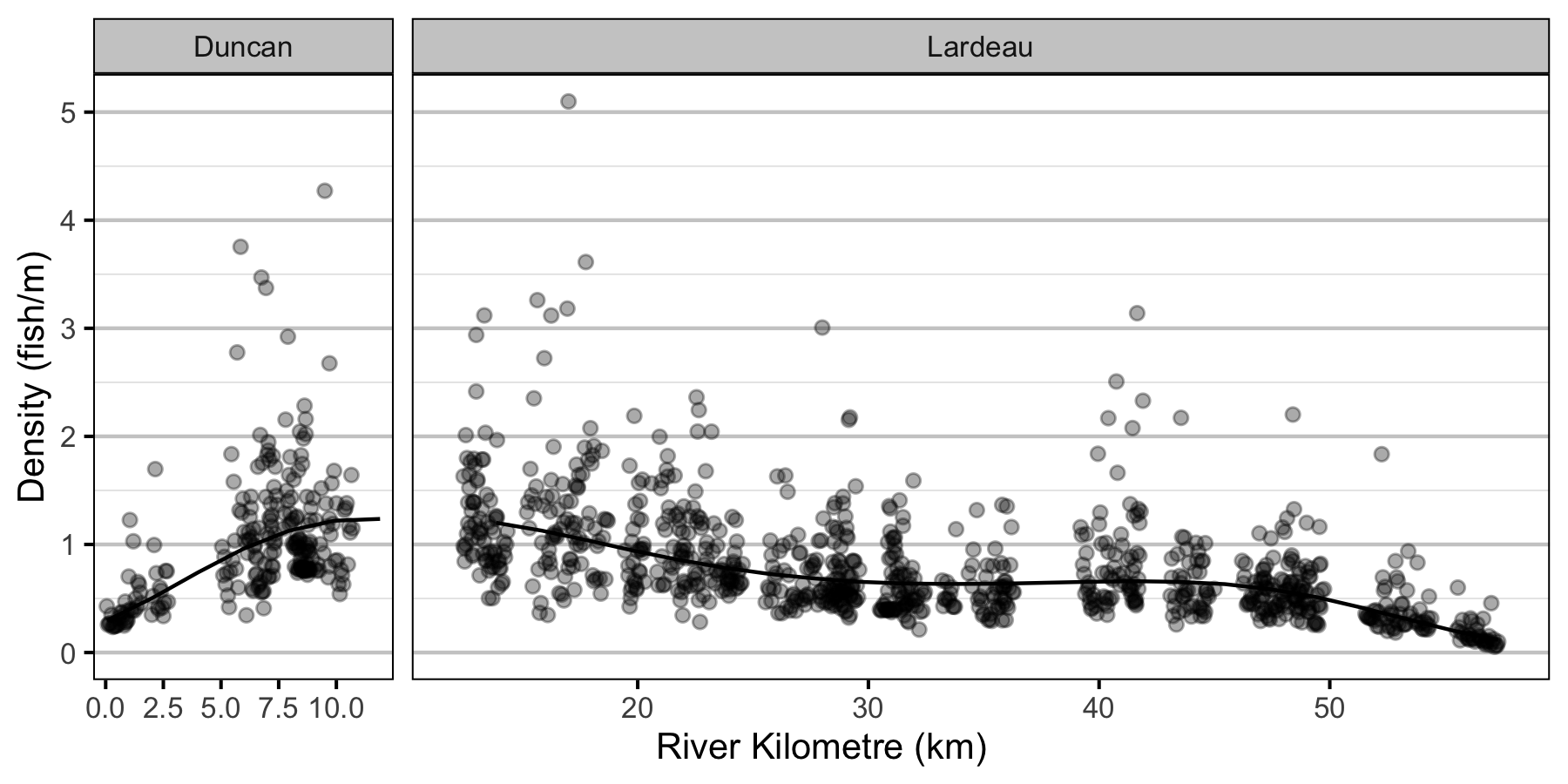

#### Abundance

The abundance was estimated from the count data using an overdispersed Poisson model (Kery and Schaub 2011, 55–56). The annual abundance estimates represent the total number of fish in the study area.

Key assumptions of the abundance model include:

- The lineal fish density varies with year, river kilometer as a polynomial, and randomly with site.
- The observer efficiency at marking sites varies by study design (GPS versus Index).
- The observer efficiency also varies by visit type (marking versus count) within study design and randomly by snorkeller.
- The expected count at a site is the expected lineal density multiplied by the site length, the observer efficiency and the proportion of the site surveyed.
- The residual variation in the actual count is gamma-Poisson distributed.

#### Condition

The condition of fish with a fork length \(\geq\) 500 mm was estimated via an analysis of mass-length relations (He et al. 2008).

More specifically the model was based on the allometric relationship

\[ W = \alpha_c L^{\beta_c}\]

where \(W\) is the weight (mass), \(\alpha_c\) is the coefficent, \(\beta_c\) is the exponent and \(L\) is the length.

To improve chain mixing the relation was log-transformed, i.e.,

\[ \log(W) = \log(\alpha_c) + \beta_c \log(L).\]

Key assumptions of the condition model include:

- \(\alpha_c\) can vary randomly by year.
- The residual variation in weight is log-normally distributed.

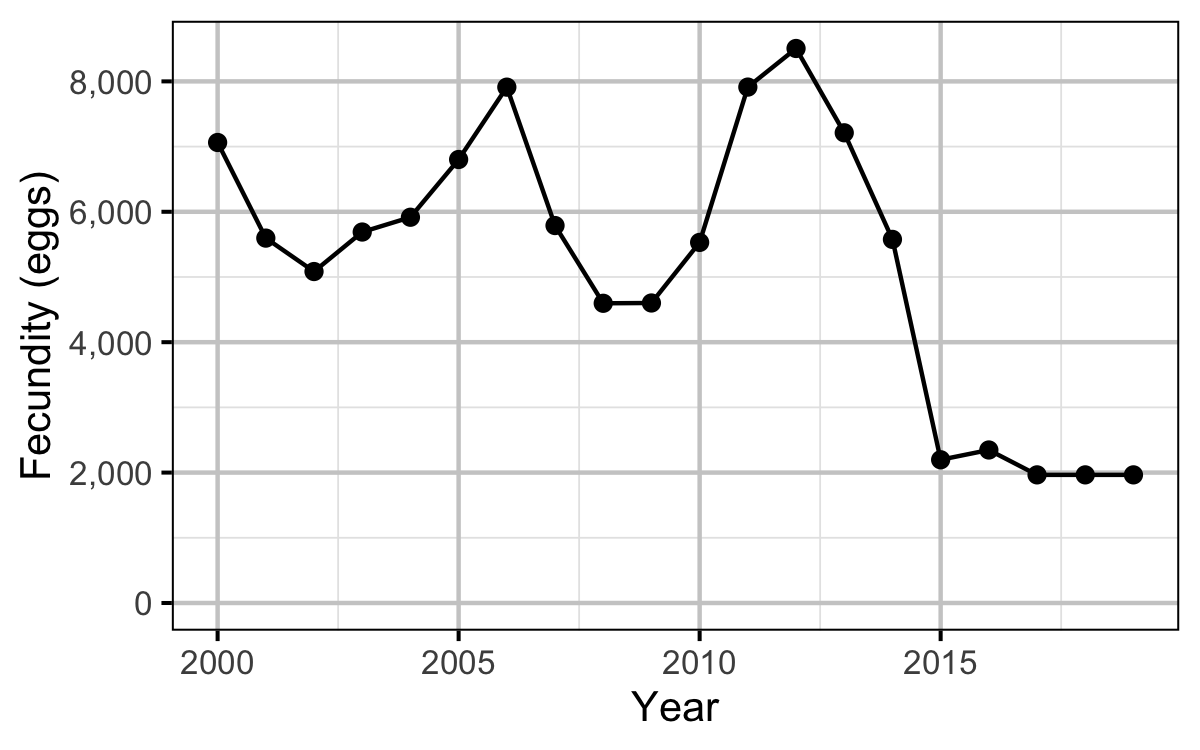

#### Fecundity

The fecundity of females with a fork length \(\geq\) 500 mm was estimated via an analysis of fecundity-mass relations.

More specifically the model was based on the allometric relationship

\[ F = \alpha_f W^{\beta_f}\]

where \(F\) is the fecundity, \(\alpha_f\) is the coefficent, \(\beta_f\) is the exponent and \(W\) is the weight.

To improve chain mixing the relation was log-transformed.

Key assumptions of the fecundity model include:

- The residual variation in fecundity is log-normally distributed.

#### Spawner Size

The average length of the spawners in each year (for years for which it was unavailable) was estimated from the mean weight of Rainbow Trout in the Kootenay Lake Rainbow Trout Mailout Survey (KLRT) using a linear regression. This approach was suggested by Rob Bison.

#### Egg Deposition

The egg deposition in each year was estimated by

- converting the average length of spawners to the average weight using the condition relationship for a typical year
- adjusting the average weight by the annual condition effect (interpolating where unavailable)
- converting the average weight to the average fecundity using the fecundity relationship
- multiplying the average fecundity by the AUC based estimate of the number of females (assuming a sex ratio of 1:1)

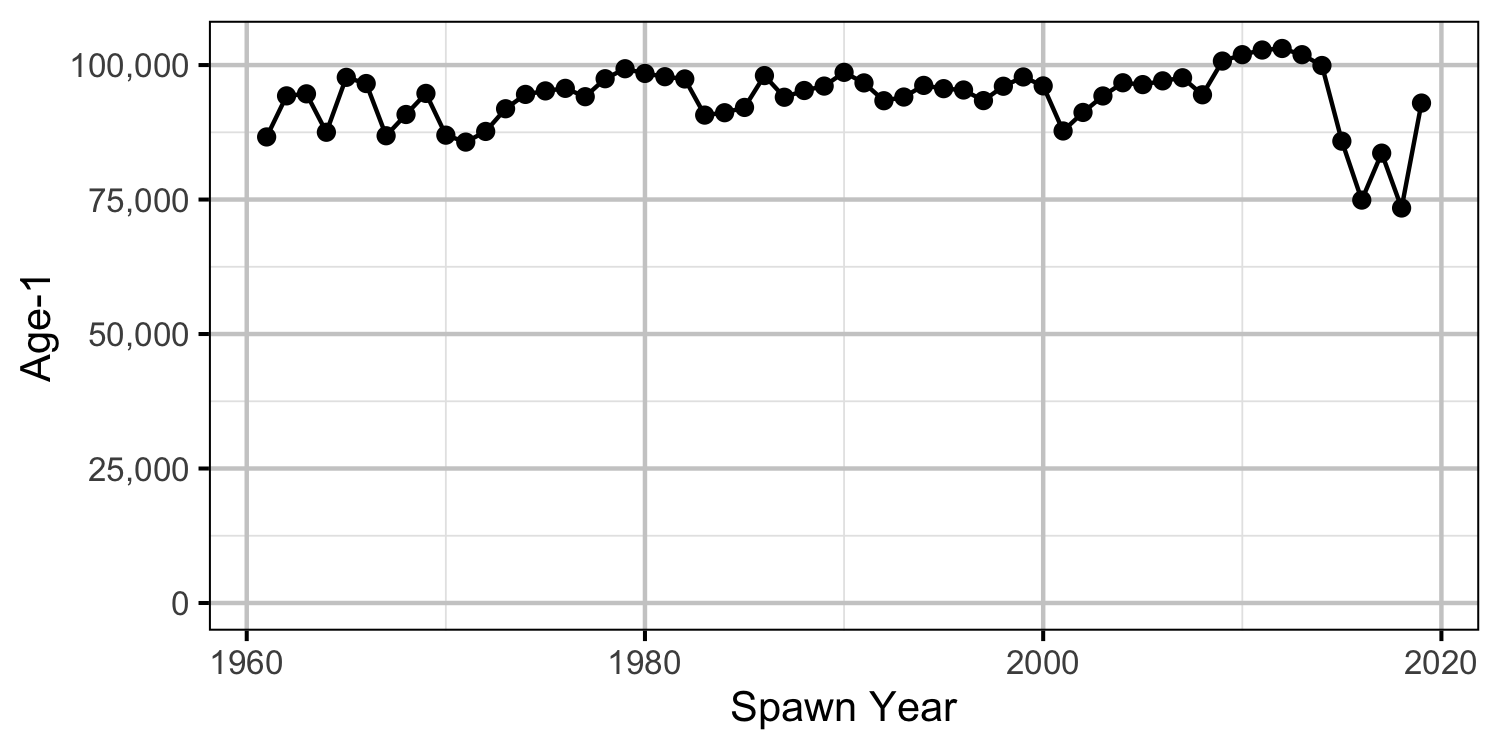

#### Stock-Recruitment

The relationship between the number of eggs (\(E\)) and the abundance of age-1 individuals the following spring (\(R\)) was estimated using a Beverton-Holt stock-recruitment model (Walters and Martell 2004):

\[ R = \frac{\alpha_s \cdot E}{1 + \beta_s \cdot E} \quad,\]

where \(\alpha_s\) is the maximum number of recruits per egg (egg survival), and \(\beta_s\) is the density dependence.

Key assumptions of the stock-recruitment model include:

- The residual variation in the number of recruits is log-normally distributed with the standard deviation scaling with the uncertainty in the number of recruits.

The age-1 carrying capacity (\(K\)) is given by:

\[ K = \frac{\alpha_s}{\beta_s} \quad.\] and the \(E_{K/2}\) Limit Reference Point (Mace 1994, E_{0.5 R_{max}}), which corresponds to the stock (number of eggs) that produce 50% of the maximum recruitment (\(K\)), by \[E_{K/2} = \frac{1}{\beta_s}\]

The LRP was also converted into a number of spawners in a typical year (assuming 6,000 eggs per spawner and a sex ratio of 1:1).

#### Age-1 to Age-2 Survival

The relationship between the number of age-1 individuals and the number of age-2 individuals the following year was estimated using a linear regression through the origin where the slope was constrained to lie between 0 and 1 by a logistic transformation.

Key assumptions of the survival rate model include:

- The residual variation in the number of age-2 individuals is log-normally distributed.

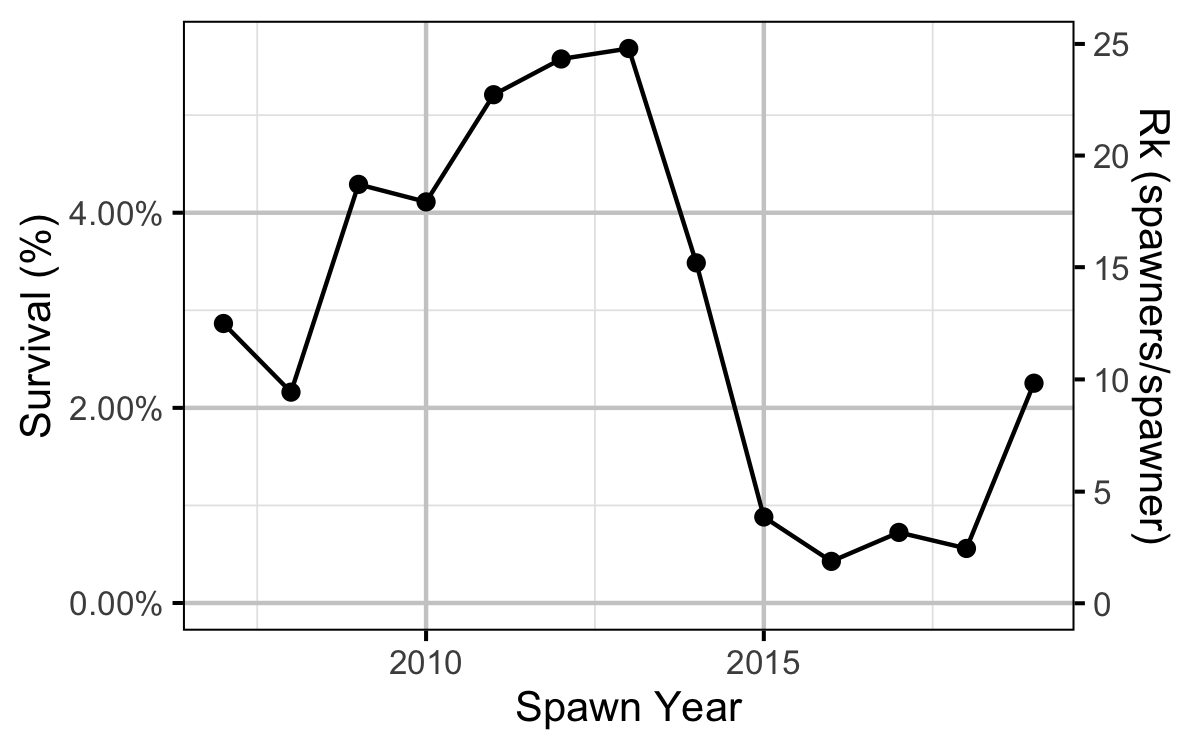

#### Reproductive Rate

The maximum reproductive rate (the number of spawners per spawner at low density) not accounting for fishing mortality was calculated by multiplying \(\beta_s\) (number of recruits per egg at low density) from the stock-recruitment relationship by the inlake survival by the average number of eggs per spawner in a typical year (assumed to be 3,000 based on 6,000 eggs per spawner and a sex ratio of 1:1). The inlake survival from age-1 to spawning was calculated by dividing the subsequent number of spawners by the number of recruits assuming that equal numbers of fish spawn at age 5, 6 and 7.

#### Expected Spawners

The expected spawners without in river and/or in lake variation was calculated from the stock-recruitment relationship and assuming in age-1 to spawner survival of 0.66%.

## Results

### Model Templates

#### Abundance

```
data {
int<lower=0> nMarked;
int<lower=0> Marked[nMarked];
int<lower=0> Resighted[nMarked];
int<lower=0> IndexMarked[nMarked];
int<lower=0> nObs;
int Marking[nObs];
int Index[nObs];
int<lower=0> nSwimmer;
int<lower=0> Swimmer[nObs];
int<lower=0> nYear;
int<lower=0> Year[nObs];
real Rkm[nObs];
int<lower=0> nSite;
int<lower=0> Site[nObs];
real SiteLength[nObs];
real SurveyProportion[nObs];
int Count[nObs];
}
parameters {
real bEfficiency;
real bEfficiencyIndex;
real bDensity;
real<lower=0> sDensityYear;
vector[nYear] bDensityYear;
vector[4] bDensityRkm;
real<lower=0> sDensitySite;
vector[nSite] bDensitySite;
real bEfficiencyMarking;
real bEfficiencyMarkingIndex;
real<lower=0,upper=5> sEfficiencySwimmer;
vector[nSwimmer] bEfficiencySwimmer;
real<lower=0> sDispersion;
}
model {
vector[nObs] eDensity;
vector[nObs] eEfficiency;
vector[nObs] eAbundance;
vector[nObs] eCount;
sDispersion ~ gamma(0.01, 0.01);
bDensity ~ normal(0, 2);
bDensityRkm ~ normal(0, 2);
sDensitySite ~ uniform(0, 5);
bDensitySite ~ normal(0, sDensitySite);
sDensityYear ~ uniform(0, 5);
bDensityYear ~ normal(0, sDensityYear);
bEfficiency ~ normal(0, 5);
bEfficiencyIndex ~ normal(0, 5);
bEfficiencyMarking ~ normal(0, 5);
bEfficiencyMarkingIndex ~ normal(0, 5);
sEfficiencySwimmer ~ uniform(0, 5);
bEfficiencySwimmer ~ normal(0, sEfficiencySwimmer);
for (i in 1:nMarked) {
target += binomial_lpmf(Resighted[i] | Marked[i],
inv_logit(
bEfficiency +
bEfficiencyIndex * IndexMarked[i] +
bEfficiencyMarking +
bEfficiencyMarkingIndex * IndexMarked[i]
));
}
for (i in 1:nObs) {
eDensity[i] = exp(bDensity +
bDensityRkm[1] * Rkm[i] +
bDensityRkm[2] * pow(Rkm[i], 2.0) +
bDensityRkm[3] * pow(Rkm[i], 3.0) +
bDensityRkm[4] * pow(Rkm[i], 4.0) +
bDensitySite[Site[i]] +
bDensityYear[Year[i]]);
eEfficiency[i] = inv_logit(
bEfficiency +
bEfficiencyIndex * Index[i] +
bEfficiencyMarking * Marking[i] +
bEfficiencyMarkingIndex * Index[i] * Marking[i] +
bEfficiencySwimmer[Swimmer[i]]);
eAbundance[i] = eDensity[i] * SiteLength[i];
eCount[i] = eAbundance[i] * eEfficiency[i] * SurveyProportion[i];
}
target += neg_binomial_2_lpmf(Count | eCount, sDispersion);
}
```

Block 1. Abundance model description.

#### Condition

```
data {
int nYear;
int nObs;
vector[nObs] Length;
vector[nObs] Weight;
int Year[nObs];
parameters {
real bWeight;
real bWeightLength;
real sWeightYear;
vector[nYear] bWeightYear;
real sWeight;
model {
vector[nObs] eWeight;
bWeight ~ normal(-10, 5);
bWeightLength ~ normal(3, 2);
sWeightYear ~ normal(-2, 5);
for (i in 1:nYear) {
bWeightYear[i] ~ normal(0, exp(sWeightYear));
}
sWeight ~ normal(-2, 5);
for(i in 1:nObs) {
eWeight[i] = bWeight + bWeightLength * log(Length[i]) + bWeightYear[Year[i]];
Weight[i] ~ lognormal(eWeight[i], exp(sWeight));
}
..
```

Block 2.

#### Fecundity

```
data {
int nObs;
vector[nObs] Weight;
vector[nObs] Fecundity;
parameters {
real bFecundity;
real bFecundityWeight;
real sFecundity;
model {
vector[nObs] eFecundity;
bFecundity ~ uniform(0, 5);
bFecundityWeight ~ uniform(0, 2);
sFecundity ~ uniform(0, 1);
for(i in 1:nObs) {
eFecundity[i] = log(bFecundity) + bFecundityWeight * log(Weight[i]);
Fecundity[i] ~ lognormal(eFecundity[i], sFecundity);
}
..
```

Block 3.

#### Stock-Recruitment

```
model {
a ~ dunif(0, 1)
b ~ dunif(0, 0.1)
sScaling ~ dunif(0, 5)
eRecruits <- a * Stock / (1 + Stock * b)
for(i in 1:nObs) {
esRecruits[i] <- SDLogRecruits[i] * sScaling
Recruits[i] ~ dlnorm(log(eRecruits[i]), esRecruits[i]^-2)
}
..
```

Block 4. Stock-Recruitment model description.

#### Age-1 to Age-2 Survival

```
model {
bSurvival ~ dnorm(0, 2^-2)
sRecruits ~ dnorm(0, 2^-2) T(0,)
for(i in 1:nObs) {
logit(eSurvival[i]) <- bSurvival
eRecruits[i] <- Stock[i] * eSurvival[i]
Recruits[i] ~ dlnorm(log(eRecruits[i]), sRecruits^-2)
}
..
```

Block 5. In-river survival model description.

### Tables

#### Abundance

Table 1. Parameter descriptions.

Parameter | Description |
---|---|

`bDensity` |
Intercept for `log(eDensity)` |

`bDensityRkm[i]` |
`i` ^{th}-order polynomial coefficients of effect of
river kilometer on `bDensity` |

`bDensitySite[i]` |
Effect of `i` ^{th} `Site` on `bDensity` |

`bDensityYear[i]` |
Effect of `i` ^{th} `Year` on `bDensity` |

`bEfficiency` |
Intercept of `logit(eEfficiency)` |

`bEfficiencyIndex` |
Effect of `Index` on `bEfficiency` |

`bEfficiencyMarking` |
Effect of `Marking` on `bEfficiency` |

`bEfficiencyMarkingIndex` |
Effect of `Marking` and `Index` on `bEfficiency` |

`bEfficiencySwimmer[i]` |
Effect of `i` ^{th} `Swimmer` on `bEfficiency` |

`eAbundance[i]` |
Expected abundance of fish at site of `i` ^{th} visit |

`eCount[i]` |
Expected total number of fish at site of `i` ^{th}
visit |

`eDensity[i]` |
Expected lineal density of fish at site of `i` ^{th}
visit |

`eEfficiency[i]` |
Expected observer efficiency on `i` ^{th} visit |

`Index` |
Whether the `i` ^{th} visit was to an index site |

`Marking[i]` |
Whether the `i` ^{th} visit was to a site with marked
fish |

`Rkm[i]` |
River kilometer of `i` ^{th} visit |

`sDensitySite` |
SD of `bDensitySite` |

`sDispersion` |
Overdispersion of `Count[i]` |

`sEfficiencySwimmer` |
SD of `bEfficiencySwimmer` |

`Site[i]` |
Site of `i` ^{th} visit |

`SiteLength[i]` |
Length of site of `i` ^{th} visit |

`SurveyProportion[i]` |
Proportion of site surveyed on `i` ^{th} visit |

`Swimmer[i]` |
Snorkeler on `i` ^{th} site visit |

`Year[i]` |
Year of `i` ^{th} site visit |

##### Age-1

Table 2. Model coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

bDensity | -1.1096785 | 0.2736116 | -4.036715 | -1.6271315 | -0.5654508 | 0.0007 |

bDensityRkm[1] | -0.3670116 | 0.0770758 | -4.715686 | -0.5100923 | -0.2108058 | 0.0007 |

bDensityRkm[2] | 0.5743347 | 0.1043470 | 5.511545 | 0.3730466 | 0.7821185 | 0.0007 |

bDensityRkm[3] | 0.0460793 | 0.0365443 | 1.227622 | -0.0290040 | 0.1135785 | 0.2293 |

bDensityRkm[4] | -0.2837399 | 0.0364228 | -7.793144 | -0.3576818 | -0.2134917 | 0.0007 |

bEfficiency | -1.7369048 | 0.1540789 | -11.254875 | -2.0262030 | -1.4315869 | 0.0007 |

bEfficiencyIndex | 0.4557351 | 0.3498358 | 1.291327 | -0.2143244 | 1.1596908 | 0.1933 |

bEfficiencyMarking | 0.5708175 | 0.1198294 | 4.776444 | 0.3290894 | 0.8066431 | 0.0007 |

bEfficiencyMarkingIndex | 0.9345531 | 0.3639227 | 2.555295 | 0.2008100 | 1.6203212 | 0.0160 |

sDensitySite | 0.6665079 | 0.0380945 | 17.513929 | 0.5959208 | 0.7448091 | 0.0007 |

sDensityYear | 0.6493044 | 0.1752962 | 3.889189 | 0.4376515 | 1.0988435 | 0.0007 |

sDispersion | 1.3034932 | 0.0715736 | 18.248749 | 1.1718438 | 1.4532615 | 0.0007 |

sEfficiencySwimmer | 0.5060444 | 0.1647808 | 3.235177 | 0.2931725 | 0.9134313 | 0.0007 |

Table 3. Model summary.

n | K | nchains | niters | nthin | ess | rhat | converged |
---|---|---|---|---|---|---|---|

3251 | 13 | 3 | 500 | 5 | 554 | 1.007 | TRUE |

##### Age-2

Table 4. Model coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

bDensity | -2.1876224 | 0.2660304 | -8.217062 | -2.7275112 | -1.6832519 | 0.0007 |

bDensityRkm[1] | -0.1750326 | 0.0959308 | -1.865767 | -0.3730968 | 0.0037882 | 0.0547 |

bDensityRkm[2] | 0.1693276 | 0.1305371 | 1.319051 | -0.0870960 | 0.4238292 | 0.1800 |

bDensityRkm[3] | 0.0831081 | 0.0457049 | 1.833735 | -0.0053836 | 0.1789322 | 0.0600 |

bDensityRkm[4] | -0.1457071 | 0.0460659 | -3.157077 | -0.2328368 | -0.0528071 | 0.0013 |

bEfficiency | -1.8599809 | 0.2283402 | -8.125957 | -2.3055024 | -1.3902680 | 0.0007 |

bEfficiencyIndex | 0.4863877 | 0.3641201 | 1.356168 | -0.1863123 | 1.2268107 | 0.1720 |

bEfficiencyMarking | 0.6588288 | 0.1754703 | 3.751294 | 0.3111354 | 1.0072532 | 0.0007 |

bEfficiencyMarkingIndex | 2.7874674 | 0.7233576 | 3.922076 | 1.6083104 | 4.4128190 | 0.0007 |

sDensitySite | 0.8010971 | 0.0476260 | 16.820048 | 0.7113288 | 0.8933715 | 0.0007 |

sDensityYear | 0.5464345 | 0.1497104 | 3.847011 | 0.3624064 | 0.9532056 | 0.0007 |

sDispersion | 1.1758854 | 0.0964979 | 12.257469 | 1.0038309 | 1.3783404 | 0.0007 |

sEfficiencySwimmer | 0.4017144 | 0.1270127 | 3.340744 | 0.2470735 | 0.7329242 | 0.0007 |

Table 5. Model summary.

n | K | nchains | niters | nthin | ess | rhat | converged |
---|---|---|---|---|---|---|---|

3251 | 13 | 3 | 500 | 5 | 732 | 1.006 | TRUE |

#### Condition

Table 6. Parameter descriptions.

Parameter | Description |
---|---|

`bWeight` |
Intercept of `log(eWeight)` |

`bWeightLength` |
Intercept of effect of `log(Length)` on `bWeight` |

`bWeightYear[i]` |
Effect of `i` ^{th} `Year` on `bWeight` |

`eWeight[i]` |
Expected `Weight` of `i` ^{th} fish |

`Length[i]` |
Fork length of `i` ^{th} fish |

`sWeight` |
Log standard deviation of residual variation in `log(Weight)` |

`sWeightYear` |
Log standard deviation of `bWeightYear` |

`Weight[i]` |
Recorded weight of `i` ^{th} fish |

`Year[i]` |
Year `i` ^{th} fish was captured |

Table 7. Model coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

bWeight | -12.648820 | 0.2207657 | -57.29181 | -13.069455 | -12.214400 | 7e-04 |

bWeightLength | 3.203589 | 0.0329678 | 97.17575 | 3.140353 | 3.266625 | 7e-04 |

sWeight | -1.905122 | 0.0205499 | -92.70511 | -1.944395 | -1.864689 | 7e-04 |

sWeightYear | -2.126987 | 0.1652127 | -12.83389 | -2.422576 | -1.773743 | 7e-04 |

Table 8. Model summary.

n | K | nchains | niters | nthin | ess | rhat | converged |
---|---|---|---|---|---|---|---|

1113 | 4 | 3 | 500 | 2 | 300 | 1.014 | TRUE |

#### Fecundity

Table 9. Parameter descriptions.

Parameter | Description |
---|---|

`bFecundity` |
Intercept of `eFecundity` |

`bFecundityWeight` |
Effect of `log(Weight)` on `log(bFecundity)` |

`eFecundity[i]` |
Expected `Fecundity` of `i` ^{th} fish |

`Fecundity[i]` |
Fecundity of `i` ^{th} fish (eggs) |

`sFecundity` |
SD of residual variation in `log(Fecundity)` |

`Weight[i]` |
Weight of `i` ^{th} fish (mm) |

Table 10. Model coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

bFecundity | 3.8348752 | 0.9450499 | 3.883479 | 1.6222147 | 4.9332675 | 7e-04 |

bFecundityWeight | 0.8616885 | 0.0352672 | 24.719821 | 0.8323165 | 0.9595364 | 7e-04 |

sFecundity | 0.1261791 | 0.0209182 | 6.170162 | 0.0948517 | 0.1776660 | 7e-04 |

Table 11. Model summary.

n | K | nchains | niters | nthin | ess | rhat | converged |
---|---|---|---|---|---|---|---|

22 | 3 | 3 | 500 | 2 | 262 | 1.012 | TRUE |

#### Stock-Recruitment

Table 12. Parameter descriptions.

Parameter | Description |
---|---|

`a` |
`Recruits` per `Stock` at low density |

`b` |
Density-dependence |

`eRecruits[i]` |
Expected number of recruits from `i` ^{th} spawn year |

`esRecruits[i]` |
Expected SD of residual variation in `Recruits` |

`Recruits[i]` |
Number of recruits from `i` ^{th} spawn year |

`SDLogRecruits[i]` |
Standard deviation of uncertainty in `log(Recruits[i])` |

`sScaling` |
Scaling term for SD of residual variation in `log(eRecruits)` |

`Stock[i]` |
Number of egg in `i` ^{th} spawn year |

##### Age-1

Table 13. Model coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

a | 0.5482213 | 0.2042660 | 2.828530 | 0.2451160 | 0.9632443 | 7e-04 |

b | 0.0000051 | 0.0000026 | 2.125866 | 0.0000018 | 0.0000114 | 7e-04 |

sScaling | 2.2091208 | 0.5182921 | 4.446719 | 1.5198236 | 3.5136412 | 7e-04 |

Table 14. Model summary.

n | K | nchains | niters | nthin | ess | rhat | converged |
---|---|---|---|---|---|---|---|

13 | 3 | 3 | 500 | 100 | 1371 | 1.001 | TRUE |

Table 15. Estimated carry capacity (with 95% CRIs).

estimate | lower | upper |
---|---|---|

108000 | 74100 | 162000 |

Table 16. Estimated reference points (with 80% CRIs).

Metric | estimate | lower | upper |
---|---|---|---|

eggs | 195000 | 107000.00000 | 387000 |

spawners | 65 | 35.66667 | 129 |

#### Age-1 to Age-2 Survival

Table 17. Parameter descriptions.

Parameter | Description |
---|---|

`bSurvival` |
`logit(eSurvival)` |

`eSurvival[i]` |
Expected annual survival for `i` ^{th} spawn year |

`Recruits[i]` |
Number of age-2 juveniles from `i` ^{th} spawn year |

`sRecruits` |
SD of residual variation in `Recruits` |

`Stock[i]` |
Number of age-1 juveniles from `i` ^{th} spawn year |

##### Age-2

Table 18. Model coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

bSurvival | -1.0184133 | 0.1690095 | -6.025869 | -1.339868 | -0.6784918 | 7e-04 |

sRecruits | 0.3830659 | 0.1061674 | 3.810358 | 0.258139 | 0.6789211 | 7e-04 |

Table 19. Model summary.

n | K | nchains | niters | nthin | ess | rhat | converged |
---|---|---|---|---|---|---|---|

11 | 2 | 3 | 500 | 1 | 590 | 1.009 | TRUE |

### Figures

#### Length Correction

#### Abundance

##### Age-1

##### Age-2

#### Condition

#### Fecundity

#### Spawner Size

#### Egg Deposition

#### Stock-Recruitment

##### Age-1

#### Age-1 to Age-2 Survival

##### Age-2

#### Inlake

#### Reproductive Rate (age-1)

#### Reproductive Rate (age-2)

#### Expected Spawners

#### Conclusions

- Modeling the density in each year as a random effect (as opposed to a fixed effect) substantially reduced the estimated density for 2006.
- The apparent survival from age-1 to age-2 was a density-independent 27%.
- The Limit Reference Point is 387,000 eggs or 129 AUC spawners (based on fecundity in a typical year).
- The egg deposition has fallen below the LRP since 2015.
- Although the 2005 spawn year resulted in double the expected recruitment, the following four years were all below average.
- Calculations suggest that the spike in the number of spawners was solely due to changes in the inlake survival.

### Recommendations

- Develop a Limit Reference Point that ensures a effective population size (\(N_e\)) of 500.
- Develop an Upper Reference Point that ensures adequate Kokanee recruitment.

## Acknowledgements

The organisations and individuals whose contributions have made this analysis report possible include:

- Habitat Conservation Trust Foundation (HCTF) and the anglers, hunters, trappers and guides who contribute to the Trust.
- Fish and Wildlife Compensation Program (FWCP) and its program partners BC Hydro, the Province of BC and Fisheries and Oceans Canada.
- Ministry of Forests, Lands and Natural Resource
Operations (MFLNRO)
- Greg Andrusak
- Matt Neufeld
- Will Warnock
- Jeff Burrows
- Tyler Weir
- Rob Bison

- Poisson Consulting
- Robyn Irvine
- Seb Dalgarno
- Evan Amies-Galonski

- Stefan Himmer
- Vicky Lipinski
- John Hagen
- Scott Decker
- Jody Schick
- Gillian Sanders
- Kerry Reed
- Jeremy Baxter
- Jeff Berdusco
- Dave Derosa
- Clint Tarala
- Gerry Nellestijn
- Jay Bowers
- Kyle Mace

## References

Bradford, Michael J, Josh Korman, and Paul S Higgins. 2005. “Using Confidence Intervals to Estimate the Response of Salmon Populations (Oncorhynchus Spp.) to Experimental Habitat Alterations.” *Canadian Journal of Fisheries and Aquatic Sciences* 62 (12): 2716–26. https://doi.org/10.1139/f05-179.

Brooks, Steve, Andrew Gelman, Galin L. Jones, and Xiao-Li Meng, eds. 2011. *Handbook for Markov Chain Monte Carlo*. Boca Raton: Taylor & Francis.

Burnham, Kenneth P., and David R. Anderson. 2002. *Model Selection and Multimodel Inference: A Practical Information-Theoretic Approach*. Vol. Second Edition. New York: Springer.

Carpenter, Bob, Andrew Gelman, Matthew D. Hoffman, Daniel Lee, Ben Goodrich, Michael Betancourt, Marcus Brubaker, Jiqiang Guo, Peter Li, and Allen Riddell. 2017. “*Stan* : A Probabilistic Programming Language.” *Journal of Statistical Software* 76 (1). https://doi.org/10.18637/jss.v076.i01.

Gelman, Andrew, Daniel Simpson, and Michael Betancourt. 2017. “The Prior Can Often Only Be Understood in the Context of the Likelihood.” *Entropy* 19 (10): 555. https://doi.org/10.3390/e19100555.

He, Ji X., James R. Bence, James E. Johnson, David F. Clapp, and Mark P. Ebener. 2008. “Modeling Variation in Mass-Length Relations and Condition Indices of Lake Trout and Chinook Salmon in Lake Huron: A Hierarchical Bayesian Approach.” *Transactions of the American Fisheries Society* 137 (3): 801–17. https://doi.org/10.1577/T07-012.1.

Kery, Marc, and Michael Schaub. 2011. *Bayesian Population Analysis Using WinBUGS : A Hierarchical Perspective*. Boston: Academic Press. http://www.vogelwarte.ch/bpa.html.

Kristensen, Kasper, Anders Nielsen, Casper W. Berg, Hans Skaug, and Bradley M. Bell. 2016. “**TMB** : Automatic Differentiation and Laplace Approximation.” *Journal of Statistical Software* 70 (5). https://doi.org/10.18637/jss.v070.i05.

Lin, J. 1991. “Divergence Measures Based on the Shannon Entropy.” *IEEE Transactions on Information Theory* 37 (1): 145–51. https://doi.org/10.1109/18.61115.

Mace, Pamela M. 1994. “Relationships Between Common Biological Reference Points Used as Thresholds and Targets of Fisheries Management Strategies.” *Canadian Journal of Fisheries and Aquatic Sciences* 51 (1): 110–22. https://doi.org/10.1139/f94-013.

McElreath, Richard. 2016. *Statistical Rethinking: A Bayesian Course with Examples in R and Stan*. Chapman & Hall/CRC Texts in Statistical Science Series 122. Boca Raton: CRC Press/Taylor & Francis Group.

Millar, R. B. 2011. *Maximum Likelihood Estimation and Inference: With Examples in R, SAS, and ADMB*. Statistics in Practice. Chichester, West Sussex: Wiley.

Plummer, Martyn. 2015. “JAGS Version 4.0.1 User Manual.” http://sourceforge.net/projects/mcmc-jags/files/Manuals/4.x/.

R Core Team. 2019. *R: A Language and Environment for Statistical Computing*. Vienna, Austria: R Foundation for Statistical Computing. https://www.R-project.org/.

Walters, Carl J., and Steven J. D. Martell. 2004. *Fisheries Ecology and Management*. Princeton, N.J: Princeton University Press.

Watanabe, Sumio. 2010. “Asymptotic Equivalence of Bayes Cross Validation and Widely Applicable Information Criterion in Singular Learning Theory.” *Journal of Machine Learning Research* 11 (Dec): 3571–94. http://www.jmlr.org/papers/v11/watanabe10a.html.
