Llgaay Gwii sdiihlda (Restoring Balance project) 2014-2019

The suggested citation for this analytic appendix is:

Thorley, J.L. & Irvine, R.L. (2024) Llgaay Gwii sdiihlda (Restoring Balance project) 2014-2019. A Poisson Consulting Analytic Appendix. URL: https://www.poissonconsulting.ca/f/994043377.

An associated paper is available from publications.

Background

To restore balance, a deer removal program was implemented on various islands in Gwaii Haanas.

The primary goal of the current analyses is to answer the following questions:

What was the relative efficiency of the removal methods?

What would the cost of removing the remaining deer have been?

Data Preparation

The data were provided by Parks Canada in the form of Excel spreadsheets and prepared for analysis using R version 4.3.2 (R Core Team 2020).

Statistical Analysis

Model parameters were estimated using Bayesian methods. The estimates were produced using JAGS (Plummer 2003). For additional information on Bayesian estimation the reader is referred to McElreath (2020).

Unless stated otherwise, the Bayesian analyses used weakly informative normal and half-normal prior distributions (Gelman et al. 2017). The posterior distributions were estimated from 4000 Markov Chain Monte Carlo (MCMC) samples thinned from the second halves of 4 chains (Kery and Schaub 2011, 38–40). Model convergence was confirmed by ensuring that the potential scale reduction factor \(\hat{R} \leq 1.01\) (Kery and Schaub 2011, 40) and the effective sample size (Brooks et al. 2011) \(\textrm{ESS} \geq 1000\) for each of the monitored parameters (Kery and Schaub 2011, 61).

The parameters are summarised in terms of the point estimate, lower and upper 95% compatibility limits (Rafi and Greenland 2020) and the surprisal s-value (Greenland 2019). The estimate is the median (50th percentile) of the MCMC samples while the 95% CLs are the 2.5th and 97.5th percentiles. The s-value indicates how surprising it would be to discover that the true value of the parameter is in the opposite direction to the estimate (Greenland 2019). An s-value of \(>\) 4.3 bits, which is equivalent to a significant p-value \(<\) 0.05 (Kery and Schaub 2011; Greenland and Poole 2013), indicates that the surprise would be equivalent to throwing at least 4.3 heads in a row.

Model selection was based on Leave-one-out cross-validation (LOO-CV) as implemented using the Pareto-smoothed importance sampling (PSIS) algorithm (Vehtari et al. 2017). LOO-CV is asymptotically equal to the Widely Applicable Information Criterion Watanabe (2013). Model weight (\(w_i\)) was based on \(\exp(-0.5 \Delta_i)\) as proposed by Akaike (1978) for Akaike Information Criterion (AIC) and by Watanabe (2010) for WAIC where \(\Delta_i\) is the absolute difference in the out-of-sample predictive density of the \(i\)th model relative to the best model (Burnham and Anderson 2002). Primary explanatory variables were evaluated based on their estimated effect sizes with 95% CLs (Bradford et al. 2005)

Model adequacy was assessed via posterior predictive checks (Kery and Schaub 2011). More specifically, the proportion of zeros in the data and the first four central moments (mean, variance, skewness and kurtosis) in the deviance residuals were compared to the expected values by simulating new data based on the posterior distribution and assumed sampling distribution and calculating the deviance residuals. In this context each s-value indicates how surprising it would be to discover that the actual data was generated using the same distribution as the simulated data.

The sensitivity of the parameters to the choice of prior distributions was evaluated by doubling the standard deviations of all the normal and half-normal priors and then using \(\hat{R}\) to evaluate whether the samples were drawn from the same posterior distribution (Thorley and Andrusak 2017).

The results are displayed graphically by plotting the modeled relationships between individual variables and the response with the remaining variables held constant. In general, continuous and discrete fixed variables are held constant at their mean and first level values, respectively, while random variables are held constant at their average values (expected values of the underlying hyperdistributions) (Kery and Schaub 2011, 77–82).

The analyses were implemented using R version 4.3.2 (R Core Team 2022) and the mbr family of packages.

Model Descriptions

Model

The data were analysed using a power function (Ward et al. 2013) for the relationship between efficiency and density

\[\text{Efficiency} = \alpha \cdot {\text{Density}}^{\beta} \]

Four models were considered which varied in whether they included variation in \(\alpha\) and \(\beta\) by method.

Key assumptions of all the models include:

  • There is no migration among the islands during the course of the study.
  • The relationship between efficiency and density is described by a power function.
  • The expected number of deer removed by island, method and day is the product of the efficiency and effort.
  • The residual variation in the number deer removed by island, method and day is described by an overdispersed Poisson distribution (negative binomial).

The full model (variation in \(\alpha\) and \(\beta\) by method = ambm) is defined algebraically as follows:

\[\text{Efficiency}_{m,i,d} = \alpha_{m} \cdot {\text{Density}_{i,d}}^{\beta_{m}} \] where \(\text{Efficiency}_{m,i,d}\) is the efficiency of the \(m\)th method on the \(i\)th island during the \(d\)th day, \(\alpha_{m}\) is the efficiency of the \(m\)th method at a density of 1 deer per km2, \(\text{Density}_{i,d}\) is the deer density (deer/km2) on the \(i\)th island at the start of the \(d\)th day and \(\beta_{m}\) is the scaling constant.

The allometric coefficient and the scaling exponent in the power function are given by

\[\log(\alpha_{m}) = a_m \] and

\[\log(\beta_{m}) = b_m\]

, respectively, where \(a_m\) and \(b_m\) are the values by method.

The expected number of deer removed using the \(m\)th method on the \(i\)th island during the \(d\)th day (\(\mu_{m,i,d}\)) is given by

\[\lambda_{m,i,d} = \text{Efficiency}_{m,i,d} \cdot \text{Effort}_{m,i,d}\]

where \(\text{Effort}_{m,i,d}\) is the effort (heli hours) of the \(m\)th method on the \(i\)th island during the \(d\)th day.

The actual number of deer removed using the \(m\)th method on the \(i\)th island during the \(d\)th day (\(\mu_{m,i,d}\)) is given by the relationship

\[\text{Removed}_{m,i,d} \sim \text{NBinomial}(\lambda_{m,i,d}, \phi)\]

The total population on each island at the start of the study was given by

\[\text{Population}_{i} = \text{TotalRemoved}_i + \Psi_i\]

where \(\Psi_i\), which is the total number of remaining deer on the \(i\)th island, was based on the number of scent trails detected by dogs at the end of the surveys and the effective coverage of those dogs according to the relationship

\[\text{ScentTrails}_i \sim \text{Binomial}(\Psi_{i},\text{Coverage}_i)\]

The priors were as follows:

\[a_m \sim \text{Normal}(1, 2)\]

\[b_m \sim \text{Normal}(0, 2)\] \[\phi \sim \text{Normal}(0, 1)\ \text{T}(0,)\]

\[\Psi_i \sim \text{Normal}(0, \text{Area}_i \cdot 5) \text{T}(0,)\]

Model Templates

Removal

model{
  for(i in 1:nIsland) {
    bRemaining[i] ~ dnorm(0, (5 * Area[i])^-2) T(0,)
    Detections[i] ~ dbin(ObsEff[i], round(bRemaining[i]))
    bPopn[i,1] <- round(TotalRemoved[i] + bRemaining[i])
    bDensity[i,1] <- bPopn[i,1] / Area[i]
    for(j in 2:nDay) {
      bPopn[i,j] <- bPopn[i,j-1] - DeerTotal[i,j-1]
      bDensity[i,j] <- bPopn[i,j] / Area[i]
    }
  }
  alpha0 <- 0

  for(i in 1:nMethod) {
    alpha_method[i] ~ dnorm(1, 2^-2)
  }

  beta0 <- 0

  for(i in 1:nMethod) {
    beta_method[i] ~ dnorm(0, 2^-2)
  }

  phi ~ dnorm(0, 1^-2) T(0,)
  for(i in 1:nObs) {
    eDensity[i] <- bDensity[Island[i],Day[i]]
    eEffort[i] <- Hours[i] * HourlyRate[i]
    log(eAlpha[i]) <- alpha0 + alpha_method[Method[i]]
    log(eBeta[i]) <- beta0 + beta_method[Method[i]]
    log(eEfficiency[i]) <- eAlpha[i] +  log((eDensity[i] / 100)^eBeta[i])
    eDeer[i] <- eEffort[i] * eEfficiency[i]
    eR[i] <- 1/phi
    eP[i] <- eR[i] / (eR[i] + eDeer[i])
    Deer[i] ~ dnegbin(eP[i], eR[i])
  }

Block 1. Model description.

Results

Tables

Costs

Table 1. The estimated hourly costs (in $) by crew member and equipment.

Type HourlyRate
BaitHunter 180
BaitHunterLead 280
BaitHunterAvg 230
BoatPlusOperator 90
HunterAvg 135
Dog 40
DogHunter 90
HeliHunter 405
HeliPlusOperator 1560

Removal

Table 2. The number of scent trail detections by dogs and the effective coverage by island.

Island ScentTrials EffectiveCoverage
Ramsay Island 10 0.30
Murchison Island 2 0.75
House Island 0 0.90

Table 3. Model comparison using Pareto Smoothed Importance-Sampling Leave-One-Out Cross-Validation (PSIS) criterion. ‘ic’ is the information criterion value (IC) on the deviance scale; ‘se’ is the standard error of the IC; ‘npars’ is the number of effective parameters, ‘delta ic’ is the difference between the model’s IC and the minimum IC; ‘delta se’ is the standard error of the difference in IC; ‘weight’ summarizes the relative support for each model; and ‘k outliers’ is the proportion of data points with Pareto \(\hat{k}\) values exceeding 0.7.

model ic se npars delta ic delta se weight k outliers
ambm 1019.026 41.54826 9.472834 0.00000 0.00000 9.995015e-01 0
amb0 1034.285 43.11210 7.304104 15.25862 8.83647 4.857535e-04 0
a0bm 1041.568 43.08811 7.276514 22.54128 10.85570 1.273524e-05 0
a0b0 1065.989 43.28138 3.383383 46.96279 15.62084 6.337856e-11 0

Table 4. Parameter descriptions.

Parameter Description
Area[i] Surface area of ith island (km2)
Day[i] Days since April 20th 2017 of ith outing
DeerTotal[i,j] Number of deer removed from ith Island on jth Day since April 20th 2017
Deer[i] Number of deer removed during ith outing
Detections[i] Number of scent trail detections on ith island at end of operations
HourlyRate[i] Relative cost of ith outing (helicopter crew hourly rate)
Hours[i] Duration of ith outing (hours)
Island[i] Island of ith outing
ObsEff[i] Effective coverage of scent trail surveys on ith island at end of operations
TotalRemoved[i] Total number of deer removed from ith island during operations
alpha0 Intercept for log(eAlpha)
alpha_method[i] Effect of ith method on alpha0
bDensity[i,j] Expected density of deer per km2 on ith island at start of jth Day since April 20th 2017
bPopn[i,j] Expected number of deer on ith island at start of jth Day since April 20th 2017
bRemaining[i] Expected number of deer remaining on ith island at end of operations
beta0 Intercept for log(eBeta)
beta_method[i] Effect of ith method on beta0
eAlpha[i] log(Efficiency) at a density of 100 deer per km2
eBeta[i] Effect of log(bDensity * 100) on log(Efficiency)
phi Extra Poisson variation

Table 5. Model terms (with 95% CIs).

term estimate lower upper svalue
alpha_method[1] 1.6200 0.98100 2.030 12.000
alpha_method[2] 1.2700 1.01000 1.480 12.000
alpha_method[3] 1.1300 0.83300 1.370 12.000
alpha_method[4] -0.9830 -3.28000 0.310 2.500
alpha_method[5] -0.4640 -3.44000 0.985 0.624
bRemaining[1] 0.2730 0.01290 1.170 12.000
bRemaining[2] 2.8100 1.57000 5.870 12.000
bRemaining[3] 31.9000 19.20000 50.400 12.000
beta_method[1] 0.9550 0.00441 1.470 4.330
beta_method[2] 0.0176 -0.41600 0.334 0.124
beta_method[3] 0.1220 -0.25000 0.429 1.050
beta_method[4] -2.0700 -4.64000 -0.662 12.000
beta_method[5] -0.6440 -1.28000 0.155 3.040
phi 0.1330 0.02300 0.310 12.000

Table 6. Model convergence.

n K logLik IC nchains niters nthin ess rhat converged
485 14 NA NA 4 1000 200 1672 1.002 TRUE

Table 7. Model sensitivity.

all analysis sensitivity bound
all 1.002 1.001 1.205

Table 8. Model sensitivity by parameter.

parameter analysis sensitivity bound
alpha_method 1.000 1.000 1.193
bDensity 1.002 1.000 1.001
beta_method 1.000 1.001 1.205
bPopn 1.002 1.000 1.001
bRemaining 1.002 1.001 1.001

Table 9. Model sensitivity by fixed terms.

term analysis sensitivity bound
alpha_method[1] 1.000 1.000 1.001
alpha_method[4] 1.000 1.000 1.193
alpha_method[5] 1.000 1.000 1.096
beta_method[1] 1.000 1.001 1.001
beta_method[4] 1.000 1.000 1.205
beta_method[5] 1.000 1.000 1.049
bRemaining[1] 1.001 1.001 1.001
bRemaining[2] 1.002 1.000 1.001

Table 10. Model posterior predictive checks.

moment observed median lower upper svalue
zeros 0.5443299 0.5434298 0.4922049 0.5947105 0.0123122
mean -0.2247702 -0.2483574 -0.3332791 -0.1558049 0.7757029
variance 0.9341431 0.8680227 0.7537828 0.9898375 1.8459070
skewness 0.7119498 0.7010032 0.4946737 0.9341840 0.1108871
kurtosis 0.1692013 -0.1078410 -0.5601321 0.6157612 1.4793099

Table 11. The total number of deer removed, the area (km2) and the removal density (deer/km2) by island.

Island Removed Area RemovalDensity
House 10 0.3292 30.376671
Murchison 26 3.9987 6.502113
Ramsay 412 16.2276 25.388844

Table 12. The total number of deer removed and the estimated number of remaining deer by island (with CIs).

Island Removed lower98 lower95 estimate upper95 upper98
House 10 0 0 0 1 1
Murchison 26 2 2 3 6 7
Ramsay 412 17 19 32 50 54

Table 13. The total number of deer removed and the estimated percent eradication completion by island (with CIs).

Island Removed lower98 lower95 estimate upper95 upper98
House 10 0.9090909 0.9090909 1.0000000 1.0000000 1.0000000
Murchison 26 0.7878788 0.8125000 0.8965517 0.9285714 0.9285714
Ramsay 412 0.8841202 0.8917749 0.9279279 0.9559165 0.9603730

Table 14. The total costs spent in heli hours by island.

Island Cost Area Cost/km2
House 10.44707 0.3292 31.734732
Murchison 33.69046 3.9987 8.425353
Ramsay 282.61980 16.2276 17.415995

Table 15. The estimated total completion cost by island and method (with CIs).

Island Method lower98 lower95 estimate upper95 upper98
House Indicator Dog 0.0000000 0.0000000 0.000000 1.376753 2.478155
House Boat 0.0000000 0.0000000 0.000000 1.648855 2.748092
Murchison Indicator Dog 0.2753505 0.5507011 3.854908 18.173136 24.781550
Murchison Boat 1.0992366 2.1984733 18.137405 122.564886 169.837557
Ramsay Indicator Dog 16.2429289 18.7169536 42.954686 129.696993 163.304904
Ramsay Boat 35.7251908 46.7175573 194.015267 1124.093130 1777.075420

Table 16. The estimated proportional efficiency of indicator dog hunting by method and density.

Method Density estimate lower upper
Combined 2 2.5248852 0.6743702 6.582835
Boat 2 0.2672479 -0.4415746 1.954678

Table 17. The total number of deer removed and the proportion of the encounters removed by method.

Method Removed EncountersRemoved
Bait Station 90 0.90
Boat 101 0.57
Helicopter 138 0.49
Indicator Dog 75 0.71
Miscellaneous 15 0.75
NA 29 0.74

Table 18. The total number of deer removed on Ramsay Island and the proportion of the encounters removed by method.

Method Removed EncountersRemoved
Bait Station 90 0.90
Boat 97 0.56
Helicopter 136 0.49
Indicator Dog 64 0.68
Miscellaneous 5 0.71
NA 20 0.69

Figures

Removal

figures/rate/efficiency_data.png

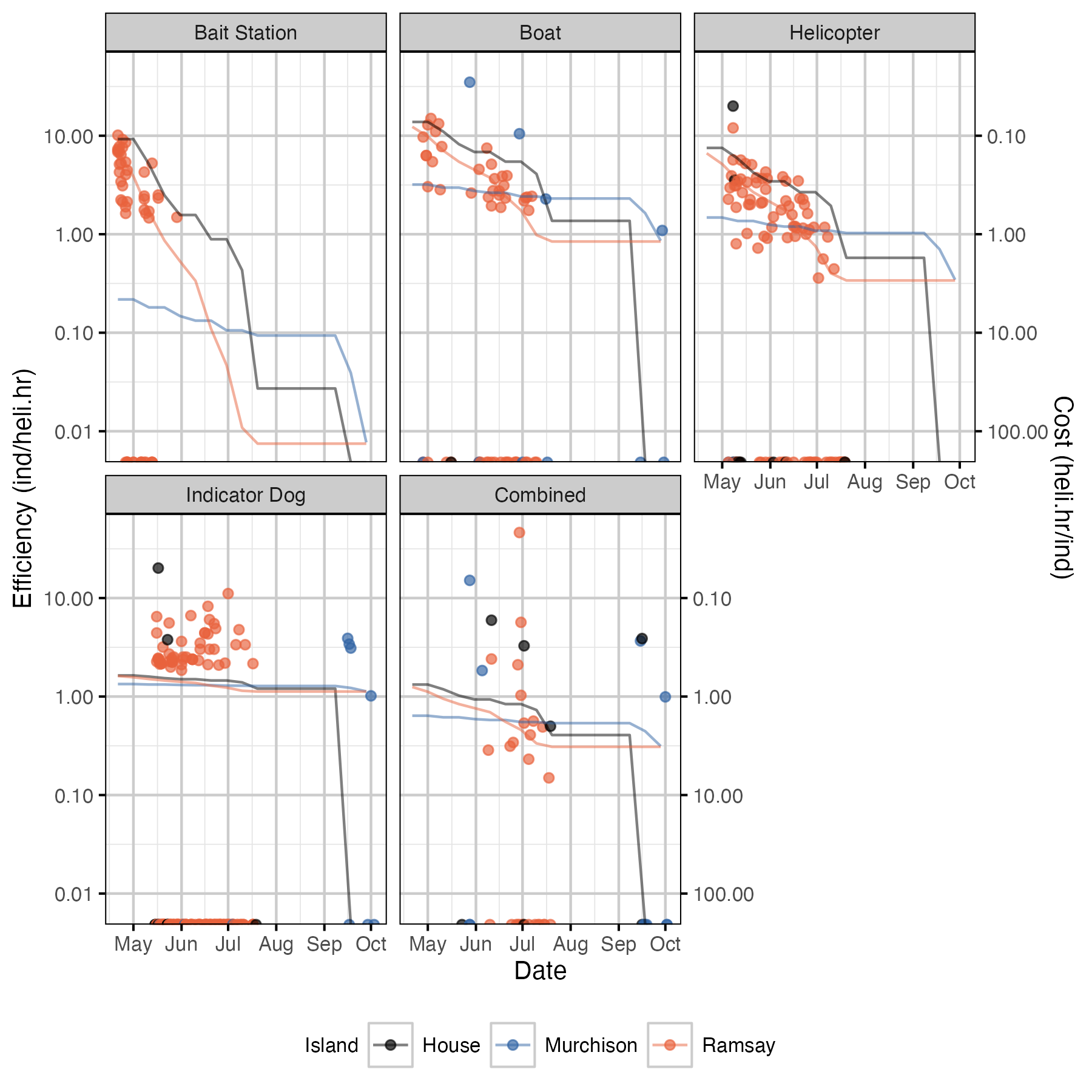

Figure 1. The removal efficiency by date, method and island with the estimated removal efficiency.

figures/rate/efficiency.png

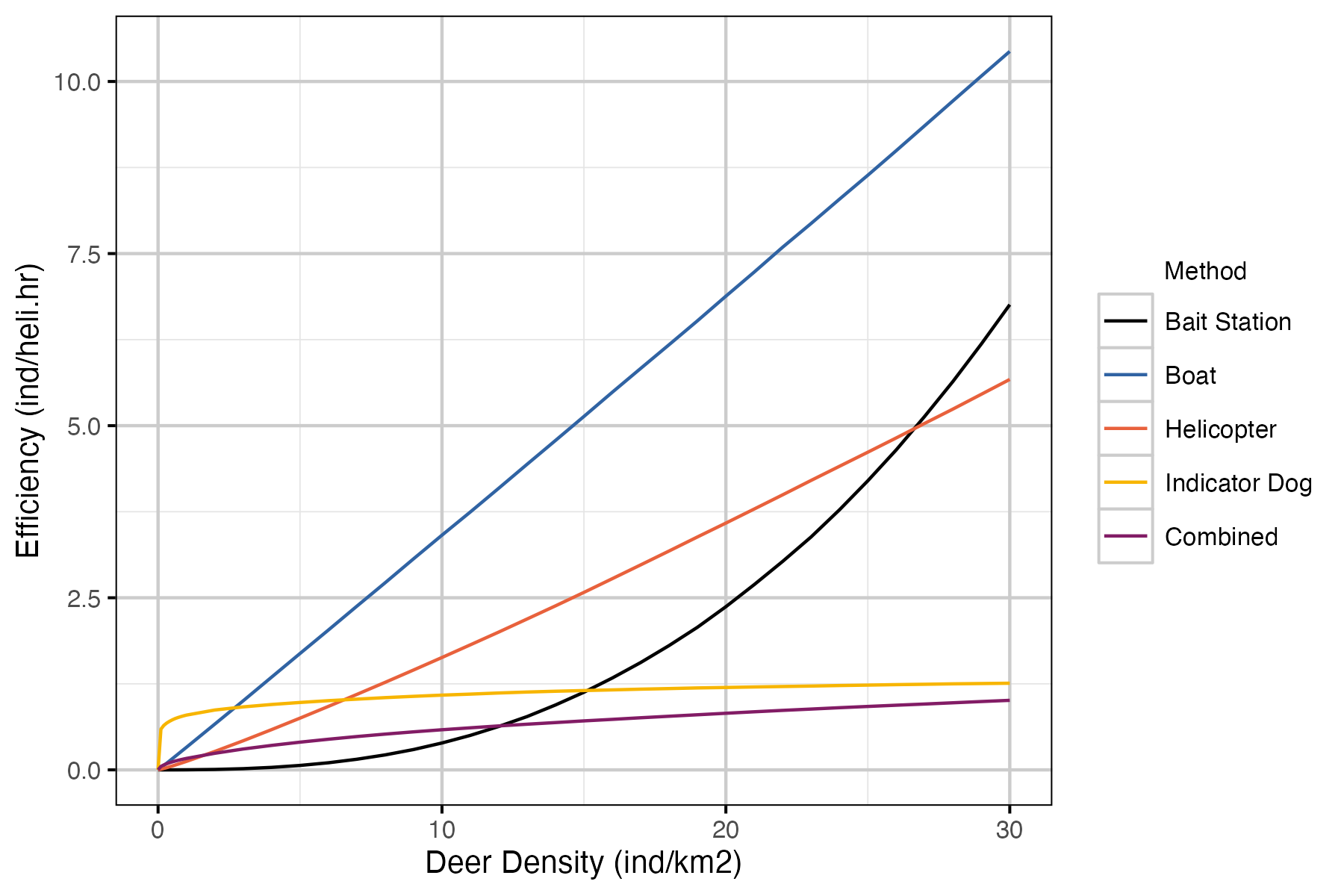

Figure 2. The estimated removal efficiency by density and method.

figures/rate/efficiency_facet.png

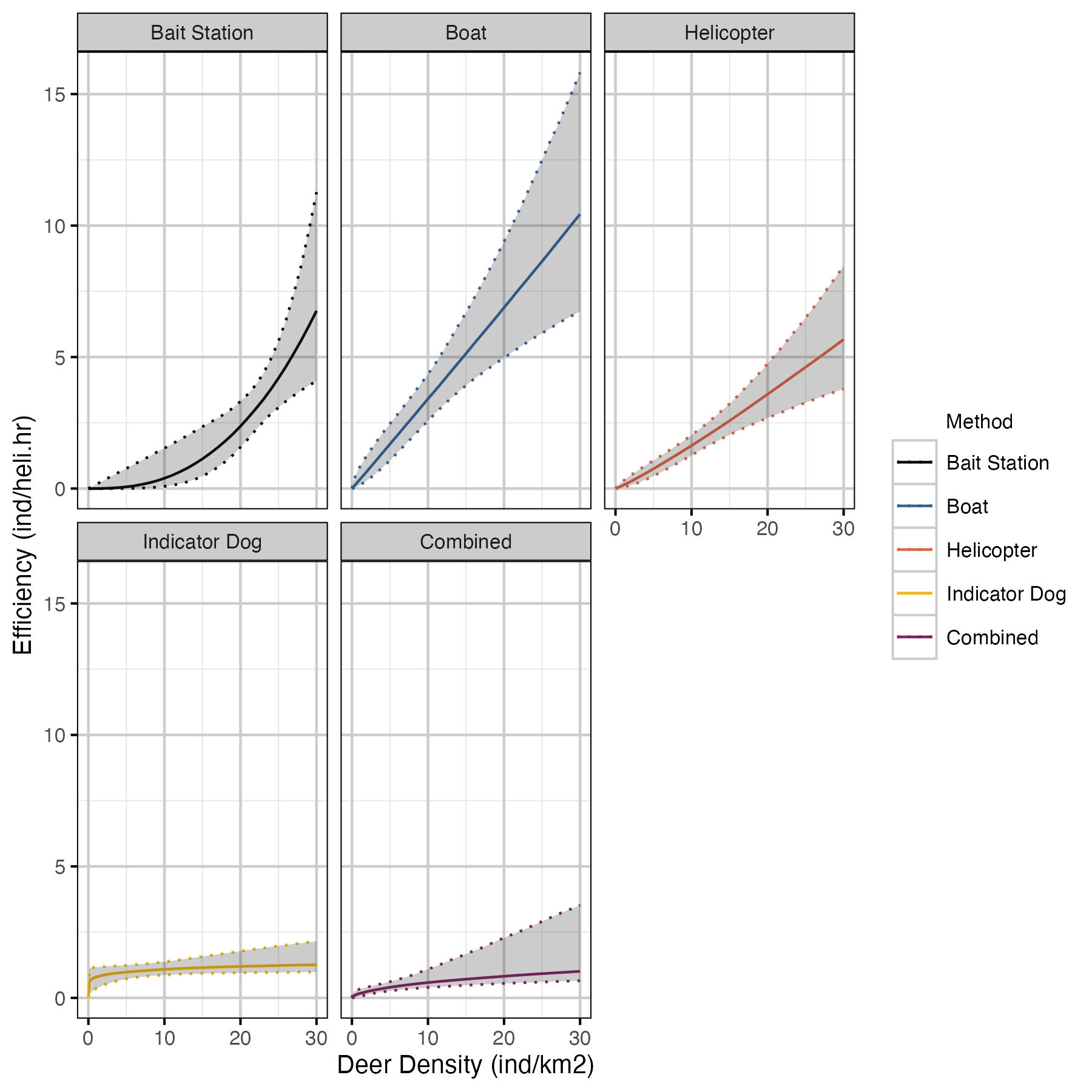

Figure 3. The estimated removal efficiency by method and density.

figures/rate/percent_completion.png

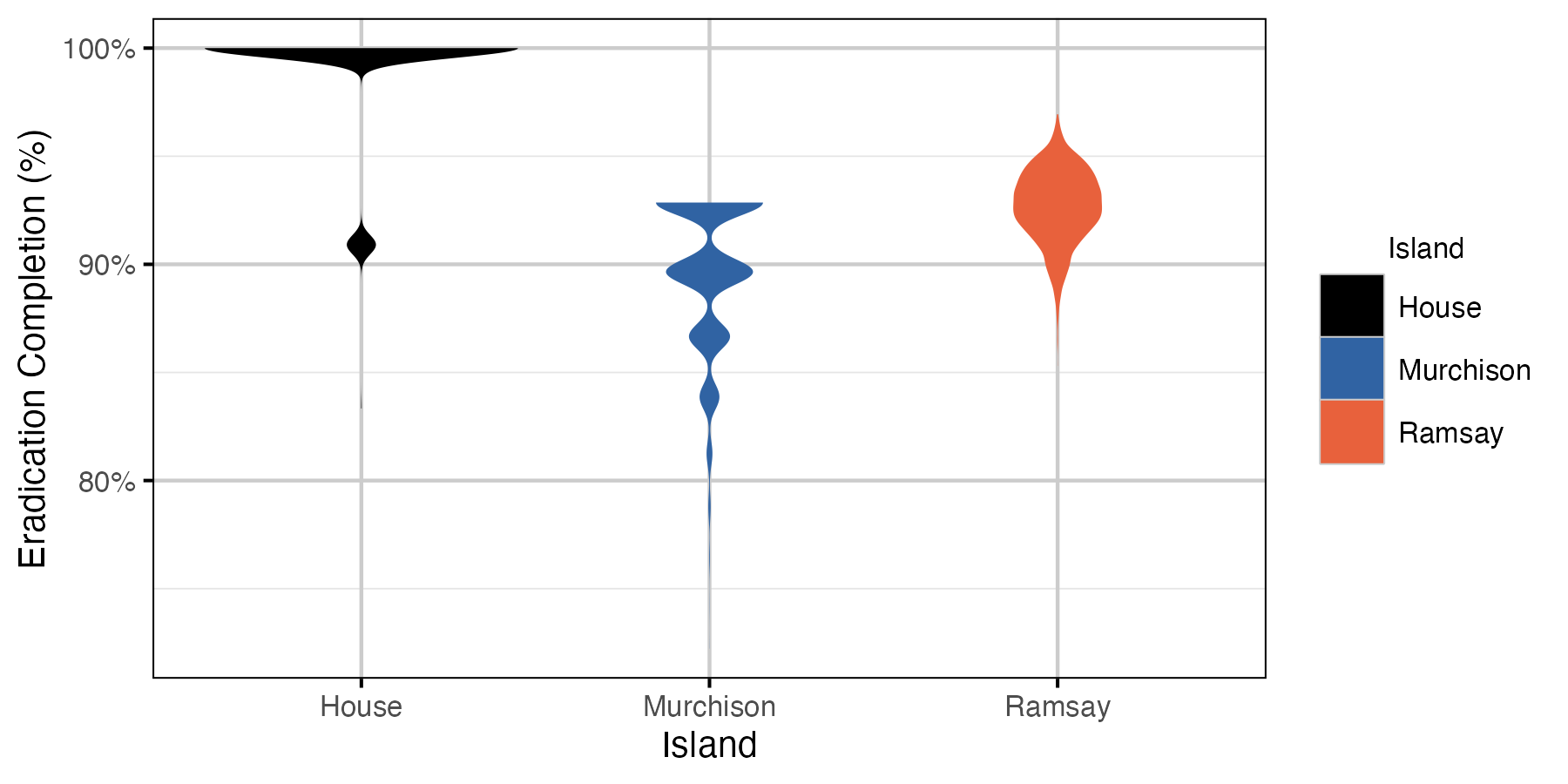

Figure 4. The posterior probability of the percent eradication completion by island.

figures/rate/cumsum.png

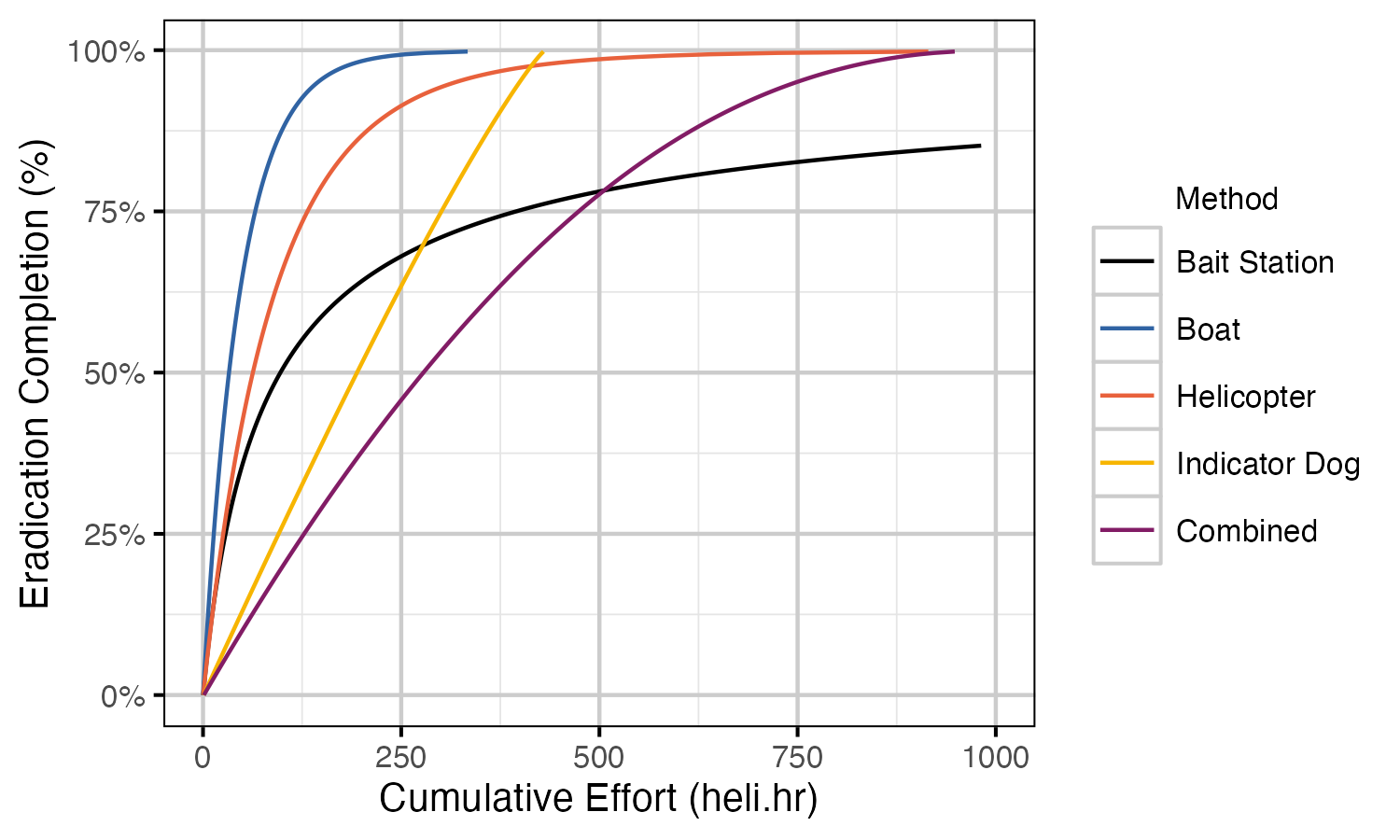

Figure 5. The estimated eradication completion by cumulative effort by method for Ramsay with a starting population of 466 deer.

Acknowledgements

The organisations and individuals whose contributions have made this analytic appendix possible include:

  • Parks Canada
    • Nadine Wilson
    • Peter Dyment
    • Charlotte Houston
    • Patrick Bartier
    • Christine Bentley
    • Emily Gonzales
    • Kent Prior
  • Coastal Conservation
    • Chris Gill
    • Greg Howald
  • Poisson Consulting
    • Seb Dalgarno
  • Simon Fraser University
    • Carl Schwarz
  • David Will
  • Pete McLelland
  • Norm MacDonald
  • Gerry Morigeau

References

Akaike, Hirotugu. 1978. “On the Likelihood of a Time Series Model.” Journal of the Royal Statistical Society: Series D (The Statistician) 27 (3-4): 217–35. https://doi.org/10.2307/2988185.
Bradford, Michael J, Josh Korman, and Paul S Higgins. 2005. “Using Confidence Intervals to Estimate the Response of Salmon Populations (Oncorhynchus Spp.) to Experimental Habitat Alterations.” Canadian Journal of Fisheries and Aquatic Sciences 62 (12): 2716–26. https://doi.org/10.1139/f05-179.
Brooks, Steve, Andrew Gelman, Galin L. Jones, and Xiao-Li Meng, eds. 2011. Handbook for Markov Chain Monte Carlo. Taylor & Francis.
Burnham, Kenneth P., and David R. Anderson. 2002. Model Selection and Multimodel Inference: A Practical Information-Theoretic Approach. Second Edition. Springer.
Gelman, Andrew, Daniel Simpson, and Michael Betancourt. 2017. “The Prior Can Often Only Be Understood in the Context of the Likelihood.” Entropy 19 (10): 555. https://doi.org/10.3390/e19100555.
Greenland, Sander. 2019. “Valid p -Values Behave Exactly as They Should: Some Misleading Criticisms of p -Values and Their Resolution With s -Values.” The American Statistician 73 (sup1): 106–14. https://doi.org/10.1080/00031305.2018.1529625.
Greenland, Sander, and Charles Poole. 2013. “Living with p Values: Resurrecting a Bayesian Perspective on Frequentist Statistics.” Epidemiology 24 (1): 62–68. https://doi.org/10.1097/EDE.0b013e3182785741.
Kery, Marc, and Michael Schaub. 2011. Bayesian Population Analysis Using WinBUGS : A Hierarchical Perspective. Academic Press. http://www.vogelwarte.ch/bpa.html.
McElreath, Richard. 2020. Statistical Rethinking: A Bayesian Course with Examples in R and Stan. 2nd ed. CRC Texts in Statistical Science. Taylor; Francis, CRC Press.
Plummer, Martyn. 2003. JAGS: A Program for Analysis of Bayesian Graphical Models Using Gibbs Sampling.” In Proceedings of the 3rd International Workshop on Distributed Statistical Computing (DSC 2003), edited by Kurt Hornik, Friedrich Leisch, and Achim Zeileis. Vienna, Austria.
R Core Team. 2020. R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing. https://www.R-project.org/.
R Core Team. 2022. R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing. https://www.R-project.org/.
Rafi, Zad, and Sander Greenland. 2020. “Semantic and Cognitive Tools to Aid Statistical Science: Replace Confidence and Significance by Compatibility and Surprise.” BMC Medical Research Methodology 20 (1): 244. https://doi.org/10.1186/s12874-020-01105-9.
Thorley, Joseph L., and Greg F. Andrusak. 2017. “The Fishing and Natural Mortality of Large, Piscivorous Bull Trout and Rainbow Trout in Kootenay Lake, British Columbia (2008–2013).” PeerJ 5 (January): e2874. https://doi.org/10.7717/peerj.2874.
Vehtari, Aki, Andrew Gelman, and Jonah Gabry. 2017. “Practical Bayesian Model Evaluation Using Leave-One-Out Cross-Validation and WAIC.” Statistics and Computing 27 (5): 1413–32. https://doi.org/10.1007/s11222-016-9696-4.
Ward, Hillary G. M., Paul J. Askey, John R. Post, and Kenneth Rose. 2013. “A Mechanistic Understanding of Hyperstability in Catch Per Unit Effort and Density-Dependent Catchability in a Multistock Recreational Fishery.” Canadian Journal of Fisheries and Aquatic Sciences 70 (10): 1542–50. https://doi.org/10.1139/cjfas-2013-0264.
Watanabe, Sumio. 2010. “Asymptotic Equivalence of Bayes Cross Validation and Widely Applicable Information Criterion in Singular Learning Theory.” Journal of Machine Learning Research 11 (Dec): 3571–94. http://www.jmlr.org/papers/v11/watanabe10a.html.
Watanabe, Sumio. 2013. “A Widely Applicable Bayesian Information Criterion.” Journal of Machine Learning Research 14 (Mar): 867–97. http://www.jmlr.org/papers/v14/watanabe13a.html.
