The suggested citation for this analytic report is:

*Thorley, J.L. and Dalgarno, S. (2017) Quesnel Exploitation Analysis 2016. A Poisson Consulting Analysis Report. URL: http://www.poissonconsulting.ca/f/986075165.*

## Background

Quesnel Lake supports a recreational fishery for large Bull Trout, Lake Trout and Rainbow Trout. To provide information on the natural and fishing mortality, trout were caught by angling and tagged with acoustic transmitters and/or reward tags.

## Methods

### Data Preparation

The outing, receiver deployment and fish capture and recapture information were provided by the Ministry of Forests, Lands and Natural Resource Operations and entered by Vicky Lipinski and databased by Gary Pavan.

The data were prepared for analysis using R version 3.4.0 (R Core Team 2017). Receivers were assumed to have a detection range of 500 m. Only individuals with a fork length (FL) \(\geq\) 450 mm, an acoustic tag life \(\geq\) 365 days (if acoustically tagged) and a $100 and $10 reward tags were included in the survival analysis.

### Data Analysis

Hierarchical Bayesian models were fitted to the data using R version
3.4.0 (R Core Team 2017) and JAGS 4.2.0 (Plummer 2015) which
interfaced with each other via the `jmbr`

package. For additional
information on hierarchical Bayesian modelling in the BUGS language, of
which JAGS uses a dialect, the reader is referred to Kery and Schaub (2011, 41–44).

Unless indicated otherwise, the models used prior distributions that
were *vague* in the sense that they did not affect the posterior
distributions (Kery and Schaub 2011, 36). The posterior distributions
were estimated from 2,000 Markov Chain Monte Carlo (MCMC) samples
thinned from the second halves of four chains (Kery and Schaub 2011, 38–40). Model convergence was confirmed by ensuring that \(\hat{R} < 1.1\)
(Kery and Schaub 2011, 40) for each of the monitored parameters in
the model(Kery and Schaub 2011, 61).

The posterior distributions of the *fixed* (Kery and Schaub 2011, 75)
parameters are summarised in terms of the point *estimate*, standard
deviation (*sd*), the *z-score*, *lower* and *upper* 95%
confidence/credible limits (CLs) and the *p-value* (Kery and Schaub 2011, 37, 42). The estimate is the median (50th percentile) of the MCMC
samples, the z-score is \(\mathrm{mean}/\mathrm{sd}\) and the 95% CLs are
the 2.5th and 97.5th percentiles. A p-value of 0.05 indicates that the
lower or upper 95% CL is 0.

The results are displayed graphically by plotting the modeled
relationships between particular variables and the response with the
remaining variables held constant. In general, continuous and discrete
fixed variables are held constant at their mean and first level values
respectively while random variables are held constant at their typical
values (expected values of the underlying hyperdistributions)
(Kery and Schaub 2011, 77–82). Where informative the influence of
particular variables is expressed in terms of the *effect size* (i.e.,
percent change in the response variable) with 95% CIs
(Bradford, Korman, and Higgins 2005).

### Model Descriptions

#### Survival

The natural mortality and exploitation were estimated using a Bayesian individual state-space survival model (Thorley and Andrusak 2017) with monthly intervals. The survival model incorporated natural and handling mortality, acoustic detection, inter-section movement, T-bar tag loss, recapture and reporting. In addition to assumptions 1 to 10, in Thorley and Andrusak (2017), the model also assumes that:

- The effect of handling on mortality lasts up to two months after capture.
- Annual T-bar tag-loss is between 1 and 30%.
- All recaptured fish are retained.
- Reporting of recaptured fish with one or more T-bar tags is between 90 and 100%.

#### Condition

The expected weight of fish of a given length were estimated from the data using a mass-length model (He et al. 2008). Key assumptions of the condition model include:

- The expected weight is allowed to vary with length and date.
- The residual variation in weight is log-normally distributed.

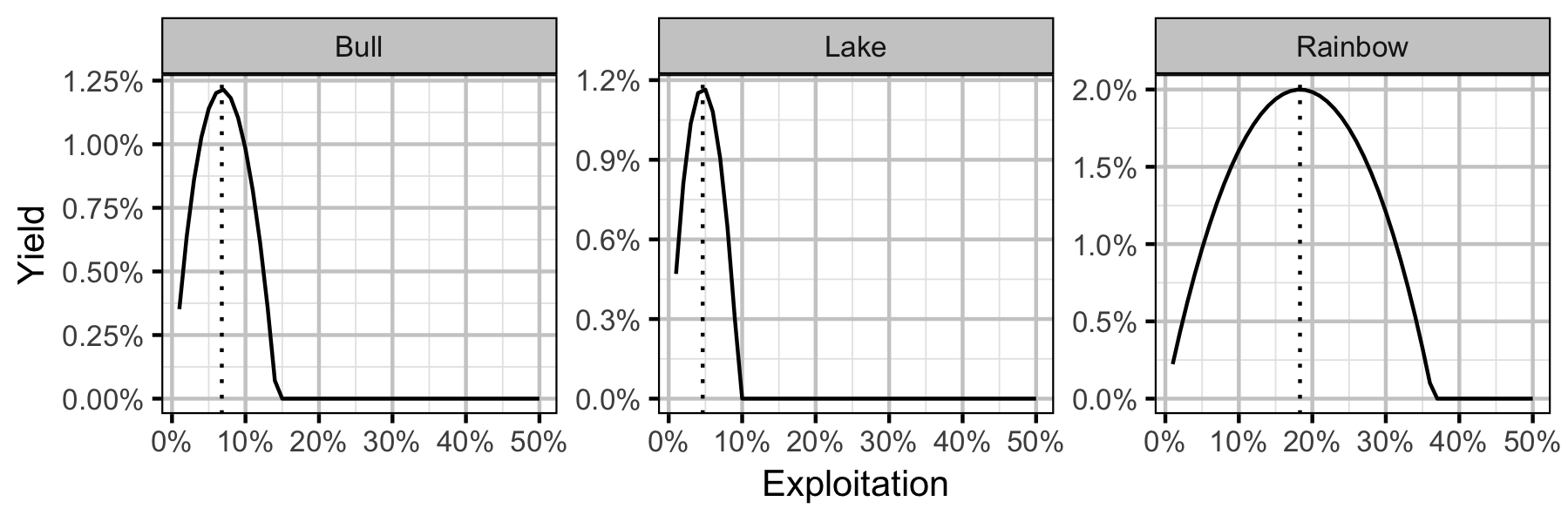

#### Yield-Per-Recruit

The optimal fishing mortality (to maximize number of individuals harvested) was calculated using a yield-per-recruit approach (Bison, O’Brien, and Martell 2003). Key assumptions include:

- The population is at equilibrium.
- All captured individuals are retained.
- There are no Allee effects.
- The life-history parameters are fixed.

## Results

### Templates

### Survival

```
model{
bMortality ~ dnorm(-3, 3^-2)
bMortalityHandling ~ dnorm(0, 2^-2)
bTagLoss ~ dunif(1 - (1 - 0.01)^(1/12), 1 - (1 - 0.30)^(1/12))
bDetected ~ dunif(0, 1)
bMoved ~ dunif(0, 1)
bRecaptured ~ dunif(0, 1 - (1 - 0.50)^(1/12))
bReported ~ dunif(0.9, 1.00)
for (i in 1:nCapture){
logit(eMortality[i,PeriodCapture[i]]) <- bMortality + bMortalityHandling
eTagLoss[i,PeriodCapture[i]] <- bTagLoss
eDetected[i,PeriodCapture[i]] <- bDetected
eMoved[i,PeriodCapture[i]] <- bMoved
eRecaptured[i,PeriodCapture[i]] <- bRecaptured
eReported[i,PeriodCapture[i]] <- bReported
InLake[i,PeriodCapture[i]] <- 1
Alive[i,PeriodCapture[i]] ~ dbern(1-eMortality[i,PeriodCapture[i]])
TBarTag100[i,PeriodCapture[i]] ~ dbern(1-eTagLoss[i,PeriodCapture[i]])
TBarTag10[i,PeriodCapture[i]] ~ dbern(1-eTagLoss[i,PeriodCapture[i]])
Detected[i,PeriodCapture[i]] ~ dbern(Monitored[i,PeriodCapture[i]] * eDetected[i,PeriodCapture[i]])
Moved[i,PeriodCapture[i]] ~ dbern(Alive[i,PeriodCapture[i]] * Monitored[i,PeriodCapture[i]] * eMoved[i,PeriodCapture[i]])
Recaptured[i,PeriodCapture[i]] ~ dbern(Alive[i,PeriodCapture[i]] * eRecaptured[i,PeriodCapture[i]])
Reported[i,PeriodCapture[i]] ~ dbern(Recaptured[i,PeriodCapture[i]] * eReported[i,PeriodCapture[i]] * step(TBarTag100[i,PeriodCapture[i]] + TBarTag10[i,PeriodCapture[i]] - 1))
for(j in (PeriodCapture[i]+1):nPeriod) {
logit(eMortality[i,j]) <- bMortality + bMortalityHandling * step(PeriodCapture[i] - j + 2)
eTagLoss[i,j] <- bTagLoss
eDetected[i,j] <- bDetected
eMoved[i,j] <- bMoved
eRecaptured[i,j] <- bRecaptured
eReported[i,j] <- bReported
InLake[i,j] ~ dbern(InLake[i,j-1] * (1-Recaptured[i,j-1]))
Alive[i,j] ~ dbern(Alive[i,j-1] * (1-Recaptured[i,j-1]) * (1-eMortality[i,j-1]))
TBarTag100[i,j] ~ dbern(TBarTag100[i,j-1] * (1-Recaptured[i,j-1]) * (1-eTagLoss[i,j]))
TBarTag10[i,j] ~ dbern(TBarTag10[i,j-1] * (1-Recaptured[i,j-1]) * (1-eTagLoss[i,j]))
Detected[i,j] ~ dbern(InLake[i,j] * Monitored[i,j] * eDetected[i,j])
Moved[i,j] ~ dbern(Alive[i,j] * Monitored[i,j] * eMoved[i,j])
Recaptured[i,j] ~ dbern(Alive[i,j] * eRecaptured[i,j])
Reported[i,j] ~ dbern(Recaptured[i,j] * eReported[i,j] * step(TBarTag100[i,j] + TBarTag10[i,j] - 1))
}
}
..
```

Template 1.

### Condition

```
model {
bWeight ~ dnorm(0, 2^-2)
bWeightLength ~ dnorm(3, 2^-2)
bWeightDayte ~ dnorm(0, 2^-2)
sWeight ~ dnorm(0, 5^-2)
for(i in 1:length(Length)) {
eWeight[i] <- bWeight + bWeightDayte * Dayte[i] + bWeightLength * Length[i]
Weight[i] ~ dlnorm(eWeight[i], exp(sWeight)^-2)
}
W_p <- bWeightLength
W_500 <- exp(bWeight)
..
```

Template 2.

### Tables

### Survival

Table 1. Parameter descriptions.

Parameter | Description |
---|---|

`bDetected` |
Logit monthly probability of detection if in-lake |

`bMortality` |
Logit monthly probability of dying of natural causes |

`bMortalityHandling` |
Effect of capture and handling on `bMortality` |

`bMoved` |
Logit monthly probability of being detected moving between sections if alive |

`bRecaptured` |
Logit monthly probability of being recaptured |

`bReported` |
Monthly probability of being reported if recaptured with one or more T-bar tags |

`bTagLoss` |
Monthly probability of loss for a single T-bar tag |

#### Bull Trout

Table 2. Model coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

bDetected | 0.4868612 | 0.0127726 | 38.1179606 | 0.4608447 | 0.5120932 | 0.0005 |

bMortality | -3.7658797 | 0.3687714 | -10.3231177 | -4.6247301 | -3.1941157 | 0.0005 |

bMortalityHandling | 0.7427651 | 0.8354063 | 0.7850448 | -1.2458831 | 1.9908157 | 0.3210 |

bMoved | 0.1730442 | 0.0135304 | 12.7720001 | 0.1463824 | 0.1985949 | 0.0005 |

bRecaptured | 0.0030820 | 0.0016779 | 1.9997871 | 0.0009506 | 0.0072446 | 0.0005 |

bReported | 0.9528007 | 0.0285138 | 33.3773691 | 0.9029412 | 0.9973418 | 0.0005 |

bTagLoss | 0.0139901 | 0.0069068 | 2.1003925 | 0.0033015 | 0.0277869 | 0.0005 |

Table 3. Model summary.

n | K | nsamples | nchains | nsims | duration | rhat | converged |
---|---|---|---|---|---|---|---|

3225 | 7 | 2000 | 4 | 512000 | 3021.74316549301s (~50.36 minutes) | 1.1 | TRUE |

#### Lake Trout

Table 4. Model coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

bDetected | 0.7990457 | 0.0075669 | 105.610228 | 0.7844283 | 0.8136332 | 5e-04 |

bMortality | -4.0586397 | 0.2186842 | -18.594192 | -4.5125622 | -3.6695118 | 5e-04 |

bMortalityHandling | 1.4965586 | 0.3038667 | 4.965026 | 0.9165637 | 2.1078007 | 5e-04 |

bMoved | 0.4543795 | 0.0116755 | 38.935016 | 0.4318811 | 0.4776996 | 5e-04 |

bRecaptured | 0.0031017 | 0.0006867 | 4.617492 | 0.0019751 | 0.0047379 | 5e-04 |

bReported | 0.9719873 | 0.0262259 | 36.831189 | 0.9065763 | 0.9990426 | 5e-04 |

bTagLoss | 0.0023166 | 0.0019086 | 1.491938 | 0.0008957 | 0.0081360 | 5e-04 |

Table 5. Model summary.

n | K | nsamples | nchains | nsims | duration | rhat | converged |
---|---|---|---|---|---|---|---|

17888 | 7 | 2000 | 4 | 256000 | 17573.3580644131s (~4.88 hours) | 1.15 | FALSE |

#### Rainbow Trout

Table 6. Model coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

bDetected | 0.5768390 | 0.0085915 | 67.148782 | 0.5590583 | 0.5941297 | 0.0005 |

bMortality | -2.7595617 | 0.1257838 | -21.950013 | -3.0099894 | -2.5177111 | 0.0005 |

bMortalityHandling | -0.2650639 | 0.2370517 | -1.115263 | -0.7320028 | 0.2060014 | 0.2470 |

bMoved | 0.7123151 | 0.0112610 | 63.251258 | 0.6903444 | 0.7345269 | 0.0005 |

bRecaptured | 0.0143381 | 0.0023400 | 6.191881 | 0.0103606 | 0.0191715 | 0.0005 |

bReported | 0.9820828 | 0.0210545 | 46.337667 | 0.9225844 | 0.9992623 | 0.0005 |

bTagLoss | 0.0045957 | 0.0024720 | 2.063455 | 0.0017078 | 0.0111733 | 0.0005 |

Table 7. Model summary.

n | K | nsamples | nchains | nsims | duration | rhat | converged |
---|---|---|---|---|---|---|---|

13072 | 7 | 2000 | 4 | 512000 | 13649.9661698341s (~3.79 hours) | 1 | TRUE |

### Condition

Table 8. Parameter descriptions.

Parameter | Description |
---|---|

`bWeight` |
Intercept of `eWeight` |

`bWeightDayte` |
Effect of `Dayte` on `bWeight` |

`bWeightLength` |
Intercept of effect of `Length` on `bWeight` |

`Dayte` |
Standardised day of year of capture |

`eWeight` |
Log expected `Weight` |

`Length` |
Log-transformed and centered on 500mm fork length |

`sWeight` |
Log standard deviation of residual variation in log `Weight` |

`W500` |
Weight at 500 mm (kg) |

`Weight` |
Mass (kg) |

`Wp` |
Weight power term |

#### Bull Trout

Table 9. Model coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

bWeight | 0.2728111 | 0.0261034 | 10.4163964 | 0.2198568 | 0.3232766 | 0.0005 |

bWeightDayte | -0.0033242 | 0.0153712 | -0.1937845 | -0.0322424 | 0.0274966 | 0.8380 |

bWeightLength | 3.3878190 | 0.1187208 | 28.5634413 | 3.1613642 | 3.6321259 | 0.0005 |

sWeight | -2.2852314 | 0.1019954 | -22.3751771 | -2.4750712 | -2.0805239 | 0.0005 |

Table 10. Derived coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

W_p | 3.387819 | 0.1187208 | 28.56344 | 3.161364 | 3.632126 | 5e-04 |

W_500 | 1.313652 | 0.0342298 | 38.35567 | 1.245898 | 1.381647 | 5e-04 |

Table 11. Model summary.

n | K | nsamples | nchains | nsims | duration | rhat | converged |
---|---|---|---|---|---|---|---|

48 | 4 | 2000 | 4 | 4000 | 0.622170925140381s | 1.01 | TRUE |

#### Lake Trout

Table 12. Model coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

bWeight | 0.3002094 | 0.0171114 | 17.576434 | 0.2681501 | 0.3355457 | 5e-04 |

bWeightDayte | 0.0344538 | 0.0084407 | 4.061973 | 0.0179892 | 0.0506157 | 5e-04 |

bWeightLength | 3.1415447 | 0.0770847 | 40.725147 | 2.9867524 | 3.2898791 | 5e-04 |

sWeight | -2.0103260 | 0.0442248 | -45.455845 | -2.0944586 | -1.9252312 | 5e-04 |

Table 13. Derived coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

W_p | 3.141545 | 0.0770847 | 40.72515 | 2.986752 | 3.289879 | 5e-04 |

W_500 | 1.350142 | 0.0231384 | 58.39137 | 1.307543 | 1.398703 | 5e-04 |

Table 14. Model summary.

n | K | nsamples | nchains | nsims | duration | rhat | converged |
---|---|---|---|---|---|---|---|

245 | 4 | 2000 | 4 | 4000 | 0.96141791343689s | 1.04 | TRUE |

#### Rainbow Trout

Table 15. Model coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

bWeight | 0.4455196 | 0.0185210 | 24.083905 | 0.4121099 | 0.4827810 | 5e-04 |

bWeightDayte | 0.0732841 | 0.0127086 | 5.785053 | 0.0497775 | 0.0989143 | 5e-04 |

bWeightLength | 3.0400317 | 0.0923604 | 32.890587 | 2.8488548 | 3.2060823 | 5e-04 |

sWeight | -1.7038010 | 0.0462766 | -36.811105 | -1.7967906 | -1.6141041 | 5e-04 |

Table 16. Derived coefficients.

term | estimate | sd | zscore | lower | upper | pvalue |
---|---|---|---|---|---|---|

W_p | 3.040032 | 0.0923604 | 32.89059 | 2.848855 | 3.206082 | 5e-04 |

W_500 | 1.561301 | 0.0289797 | 53.91400 | 1.510000 | 1.620575 | 5e-04 |

Table 17. Model summary.

n | K | nsamples | nchains | nsims | duration | rhat | converged |
---|---|---|---|---|---|---|---|

214 | 4 | 2000 | 4 | 4000 | 0.952297925949097s | 1.01 | TRUE |

### Yield-Per-Recruit

Table 18. Assumed life-history parameters values in yield-per-recruit calculation by trout species.

Parameter | Symbol | Bull | Lake | Rainbow |
---|---|---|---|---|

Asymptotic length (mm) | \(L_{\infty}\) | 1000.00 | 1000.00 | 1000.0 |

Growth constant (y-1) | \(k\) | 0.13 | 0.15 | 0.2 |

Weight at 500 mm (kg) | \(W_{500}\) | 1.30 | 1.40 | 1.6 |

Weight power | \(W_{p}\) | 3.40 | 3.10 | 3.0 |

Length at maturity (mm) | \(L_{m}\) | 500.00 | 500.00 | 500.0 |

Length at which 50% vulnerable to angling (mm) | \(L_{v}\) | 400.00 | 400.00 | 400.0 |

Vulnerability power | \(V_{p}\) | 10.00 | 10.00 | 10.0 |

Maximum annual reproductive rate | \(R_{k}\) | 3.80 | 2.50 | 6.0 |

Table 19. Yield-per-recruit calculations.

Parameter | Symbol | Relationship |
---|---|---|

Annual interval fishing mortality rate | \(U\) | \(\text{Optimized by yield-per-recruit analysis}\) |

Annual interval natural mortality rate | \(V\) | \(\text{From survival analysis}\) |

Annual instantaneous fishing mortality rate | \(F\) | \(-\text{log}(1-U)\) |

Annual instantaneous natural mortality rate | \(M\) | \(-\text{log}(1-V)\) |

Length at age a (mm) | \(L_{a}\) | \(L_{\infty}(1-\exp(-k \cdot a))\) |

Weight at age a (kg) | \(W_{a}\) | \((W_{500} / 500^{W_p}) \cdot L_{a}^{W_p}\) |

Relative fecundity at age a | \(F_{a}\) | \(W_{a} \: \text{if} \: (L_{a} \geq L_{m}) \: \mathrm{otherwise}\: 0\) |

Vulnerability to fishing at age a | \(V_{a}\) | \(L_{a}^{V_p}/(L_{v}^{V_p} + L_{a}^{V_p})\) |

Unfished survivorship to age a | \(\lambda_{a}\) | \(\exp(-M)^{a-1}\) |

Fished survivorship to age a | \(\lambda'_{a}\) | \(\exp(-M+F \cdot V_a)^{a-1}\) |

Unfished relative fecundity per age-1 recruit | \(\phi_{0}\) | \(\sum(\lambda_{a} \cdot F_{a})\) |

Fished relative fecundity per age-1 recruit | \(\phi'_{0}\) | \(\sum(\lambda'_{a} \cdot F_{a})\) |

Unfished age-1 recruits as percent of total unfished fish population (TUFP) (%) | \(R_{0}\) | \(100/\sum\lambda_{a}\) |

Stock productivity at low density | \(\alpha\) | \(R_{k} \cdot \phi^{-1}\) |

Stock density dependence | \(\beta\) | \((R_{k} - 1)/(R_{0} \cdot \phi)\) |

Fished age-1 recruits as percent of TUFP (%) | \(R'_{0}\) | \((\alpha \cdot \phi'_{0} - 1)/(\beta \cdot \phi'_{0})\) |

Equilibrium yield as percent of TUFP (%) | \(Y_{e}\) | \(U \cdot R'_{0} \cdot \sum(\lambda'_{a} \cdot V_{a})\) |

### Figures

### Capture

### Sections

### Coverage

### Detections

### Section Use

### Survival

### Yield-Per-Recruit

## Conclusions

### Recommendations

Recommendations include:

- Develop webpage animating individual fish movements.
- Incorporate recaptures by research crew into survival model.
- Add growth component to survival model to estimate growth parameters and adjust lengths.
- Explore seasonal, annual and length-based variation in natural and fishing mortality.
- Review life-history parameters, in particular \(R_k\), used in the yield-per-recruit calculations.

## Acknowledgements

The organisations and individuals whose contributions have made this analysis report possible include:

- Quesnel Lake anglers for reporting their catches
- Habitat Conservation Trust Foundation (HCTF) and the anglers, hunters, trappers and guides who contribute to the Trust
- Ministry of Forests, Lands and Natural Resource Operations (MFLNRO)
- Lee Williston
- Greg Andrusak
- Mike Ramsay

- Reel Adventures
- Kerry Reed

- Gary Pavan
- Vicky Lipinski

## References

Bison, Robert, David O’Brien, and Steven J. D. Martell. 2003. “An Analysis of Sustainable Fishing Options for Adams Lake Bull Trout Using Life History and Telemetry Data.” Kamloops, B.C.: BC Ministry of Water Land; Air Protection.

Bradford, Michael J, Josh Korman, and Paul S Higgins. 2005. “Using Confidence Intervals to Estimate the Response of Salmon Populations (Oncorhynchus Spp.) to Experimental Habitat Alterations.” *Canadian Journal of Fisheries and Aquatic Sciences* 62 (12): 2716–26. https://doi.org/10.1139/f05-179.

He, Ji X., James R. Bence, James E. Johnson, David F. Clapp, and Mark P. Ebener. 2008. “Modeling Variation in Mass-Length Relations and Condition Indices of Lake Trout and Chinook Salmon in Lake Huron: A Hierarchical Bayesian Approach.” *Transactions of the American Fisheries Society* 137 (3): 801–17. https://doi.org/10.1577/T07-012.1.

Kery, Marc, and Michael Schaub. 2011. *Bayesian Population Analysis Using WinBUGS : A Hierarchical Perspective*. Boston: Academic Press. http://www.vogelwarte.ch/bpa.html.

Plummer, Martyn. 2015. “JAGS Version 4.0.1 User Manual.” http://sourceforge.net/projects/mcmc-jags/files/Manuals/4.x/.

R Core Team. 2017. “R: A Language and Environment for Statistical Computing.” Vienna, Austria: R Foundation for Statistical Computing. https://www.R-project.org/.

Thorley, Joseph L., and Greg F. Andrusak. 2017. “The Fishing and Natural Mortality of Large, Piscivorous Bull Trout and Rainbow Trout in Kootenay Lake, British Columbia (2008–2013).” *PeerJ* 5 (January): e2874. https://doi.org/10.7717/peerj.2874.
